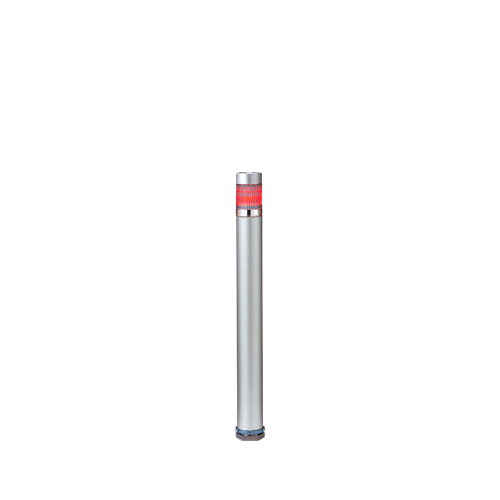

25mm, 1-Tier LED signal tower, 24V DC, NPN, continuous only, direct mount, clear lens, 200mm long silver aluminum body LED module: Red
- PATLITE's Exclusive Hybrid Prism-Cut Lens: For enhanced visibility from any direction and distance.
- Enhanced Illumination: Special high intensity illumination design.
- Installation: Direct mount with a single hole.
- Interchangeable Modules: No re-wiring even after installation.
- Main Body: Corrosion resistant anodized aluminum for retaining its external beauty.
- Lens: Superior impact and heat resistant polycarbonate resin for superior durability and light transmission.
- Body Length: 200mm
ME-102A-R
ME - Bottom
Nut and washer for ME/MES
ME/MES Series
| DIMENSIONS |
- 25mm diameter |
| OPERATING VOLTAGES |
- 24V DC |
| FUNCTIONS |
- Continuous Only |
| BODY STYLE |
- Pre-assembled, pre-wired
- Interchangeable and stackable module after purchase |
| BODY COLOR |
- Silver |
| STACKABLE TIERS |
- Up to 5 modules can be stacked |
| |
| CONFORMITY STANDARDS |
- CE Marking
- UL Listed (US)
- c-UL Listed (Canada)
- RoHS |
| PROTECTION RATINGS |
- IP42 |
DOWNLOAD
ME-A_Specifications+(En).pdf
|
|
|
