25mm, 1-tier Signal Tower with continuous light; 24V DC, PNP open collector compatible, 40mm short, silver body; Clear lens, Red LED module; Special Order: No Cancellation, No Return
- PATLITE's Exclusive Hybrid Prism-Cut Lens: For enhanced visibility from any direction and distance.
- Enhanced Illumination: Special high intensity illumination design.

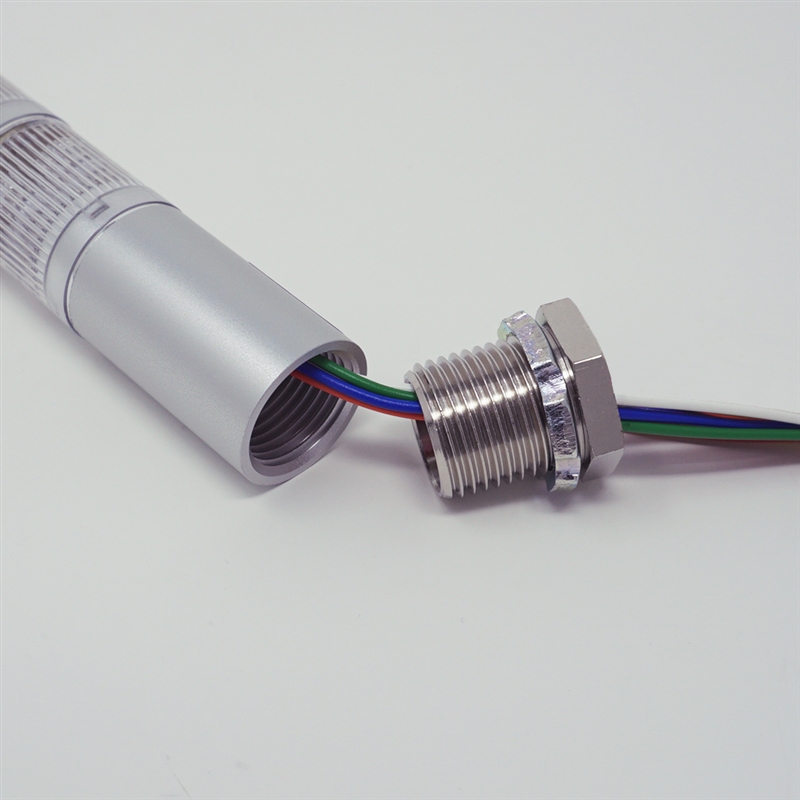

- Installation: Direct mount with a single hole.
- Interchangeable Modules: No re-wiring even after installation.
- Main Body: Corrosion resistant anodized aluminum for retaining its external beauty.
- Lens: Superior impact and heat resistant polycarbonate resin for superior durability and light transmission.
- Body Length: 40mm short
MES-102P-R+FB123
ME/MES - Bottom

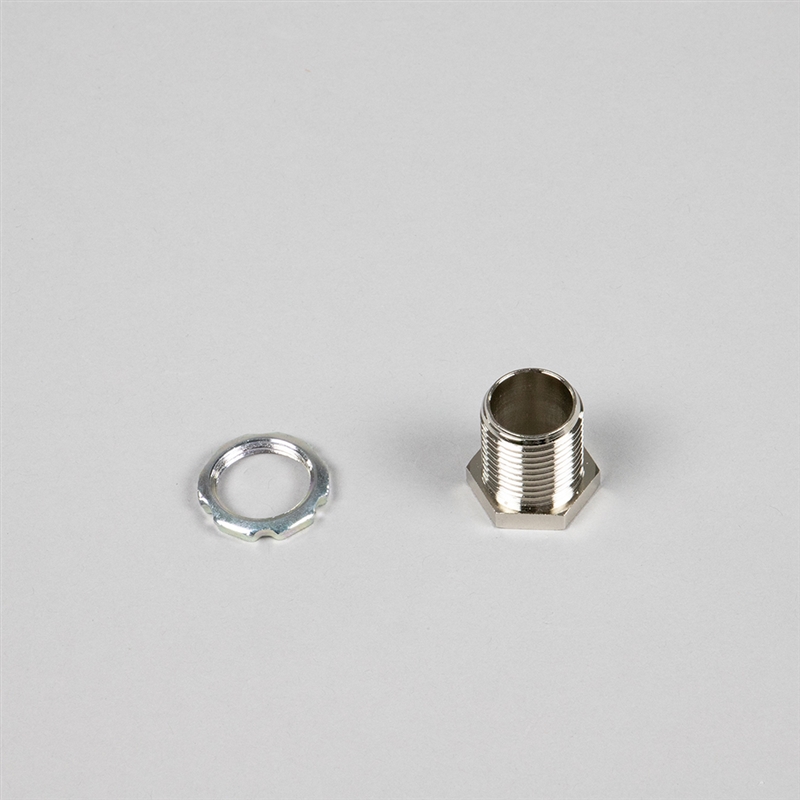

Nut and washer for ME/MES

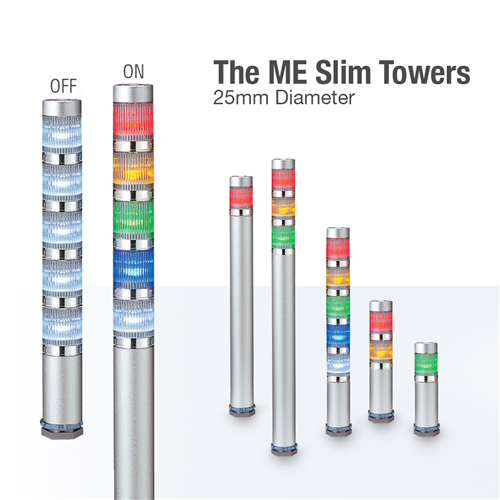

ME/MES Series
|
DIMENSIONS
|
25mm
|
|
OPERATING VOLTAGES
|
24V DC
|
|
BODY STYLE
|
- Pre-assembled, pre-wired
- Interchangeable and stackable module after purchase
|
|
BODY COLOR
|
Silver
|
|
STACKABLE TIERS
|
Up to 5 modules can be stacked
|
|
CONFORMITY STANDARDS
|
- CE Marking
- UL Listed (US)
- c-UL Listed (Canada)
- RoHS
|
|
|
|
