Diameter (mm) - Signal Tower
>
30mm
>

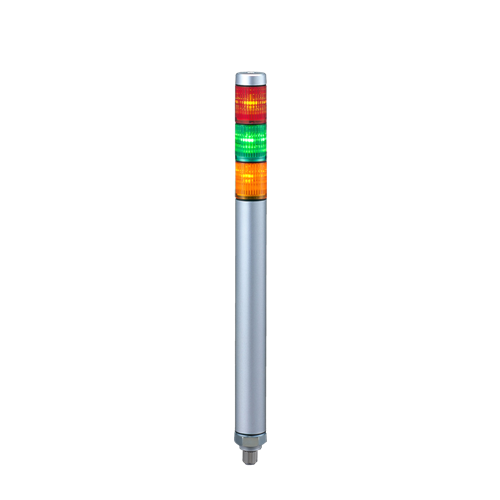

MP-302C-RGY
30mm 3-Tier LED Signal Tower at 24V DC, Direct Mount, M12 connector, Silver Body, LED: Red, Green, Amber
Alternative Views:
Price:
USD $
179.00
Quantity in Stock:
(Out of Stock)
Product Code:
MP-302C-RGY
Qty:
Email me when Back-In-Stock
Description
Technical Specs
30mm diameter 3-Tier signal tower at 24V DC.
Steady light only, direct mount, 4-pin M12 connector, 245mm tall silver body. LED modules: Red, Green, Amber
Includes an M-12 Quick Connector.
PATLITE's exclusive hybrid prism-cut lens to enhance visibility from any direction and distance.
Double Insulation for enhanced durability and safety in the work environment.
Direct mount installation with just a single hole.
Interchangeable LED modules needing no re-wiring, even after installation.
Main Body made of heat resistant ABS resin for superior impact resistance.
Lens made with light translucent AS resin for superior weather resistance.
MP-302C-GYR
MP-C type M12 Connection
Nut and washers for MP
MP Lineup
DIMENSIONS
- 30mm diameter
OPERATING VOLTAGES
- DC 24V (Non-polar)
FUNCTIONS
- M-12 Quick Connector (Cable not included)
- Continuous Lighting Only
- Dry contact closure such as switches or relay contacts
- Open-collector transistor (NPN or PNP) for DC24V
- Direct voltage control
MOUNTING
- Direct mount only: includes M22 mounting nut and sealing gasket
BODY STYLE
- M-12 Connector Adaptor (Cable not included)
- Pre-assembled, pre-wired
- Modules interchangeable and stackable after purchase
BODY COLOR
- Body: Silver
STACKABLE TIERS
- From 1 to 3 modules can be stacked
MODULE COLORS
- Red
- Green
- Amber
CONFORMITY STANDARDS
- CE Marking
- UL Recognized Component (File No.E215660)
- RoHS Compliant
PROTECTION RATINGS
- IP 65
DOWNLOAD
MP-C_Specifications (En).pdf
Accessories
B72100182-2F1
30mm, Amber LED module for MP/MPS series; Non-Returnable
B72100182-1F1
30mm, Red LED module for MP/MPS series; Non-Returnable
B72100182-3F1
30mm, Green LED module for MP/MPS series; Non-Returnable
MP-B
87dB Buzzer Module for MP and MPS
Price:
USD $43.00
Price:
USD $43.00
Price:
USD $43.00
Price:
USD $82.00
S33552120-03125F1
3 Tier shaft replacement for MP/MPS series
Price:
USD $8.00
