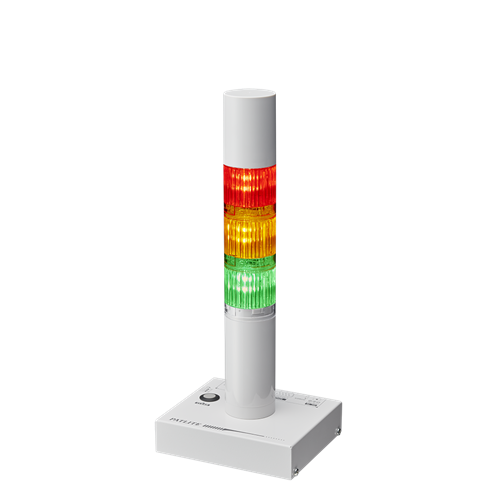

PHE-3FB3N-RYG
Interface Converter with 40mm Signal Tower
Alternative Views:
An Interface Converter featuring 3-tier Signal Tower with
2 flash patterns, 4 built-in alarms
, sends
ASCII
commands
over USB or RS-232C
from remote locations.
Price:
USD $
528.00
Quantity in Stock:19
Product Code:
PHE-3FB3N-RYG
Qty:
Description
Technical Specs
Send ASCII commands over USB or RS-232C to control the PHE.
Power over USB or 24V DC supply source.
Features 2 built-in flash functions and
4 built-in alarm sounds with adjustable volume up to 80dB.
Modular and clear LED units (clear when off).
Designed with a clear switch to reset visual and audible alerts once an alert is confirmed.
Operating Ambient Temperature
0℃ - +40℃
Operating Humidity Range
20 - 85% RH (no dew condensation)
Storage Temperature Range
-10℃ - +60℃
Storage Humidity Range
20 - 85% RH (no dew condensation)
Mounting Location
Indoor Use
Mounting Direction
Upright Position
Protection Rating
IP20
Conformity Standards
- UL/CSA 60950-1
- CE Marking
- FCC Part 15 Subpart B Class A
- RoHS Directive (EN 50581)
DOWNLOAD
PHE-3FB3_Specifications.pdf
Features
Accessories
ADP-001
Universal Power Supply 100-240V AC to 24V DC
LR4-E-R
40mm LED Unit for LR Signal Tower, Red
LR4-E-B
40mm LED Unit for LR Signal Tower, Blue
LR4-E-Y
40mm LED Unit for LR Signal Tower, Amber
Price:
USD $41.00
Price:
USD $29.00
Price:
USD $34.00
Price:
USD $29.00
LR4-E-C
40mm LED Unit for LR Signal Tower, White
LR4-E-G
40mm LED Unit for LR Signal Tower, Green
Price:
USD $34.00
Price:
USD $34.00
