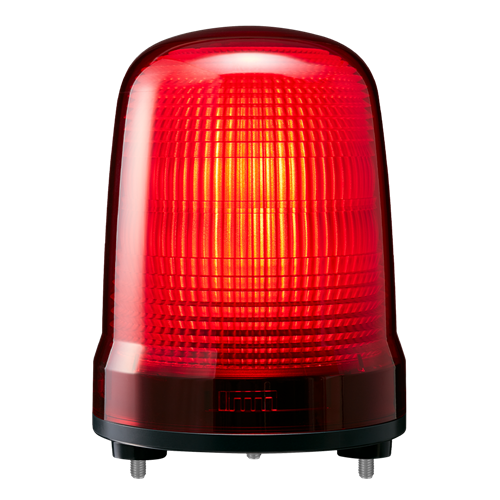

Flashing beacon ⌀150mm, 12-24V DC, Cable, Red
- A variety of display patterns including triple flash, blinking, and continuous
- Designed with a newly developed Fresnel lens, presenting a wider light-emitting surface and higher luminous intensity
- Detailed texture of the Fresnel lens achieves even, ambient light distribution around the perimeter of the globe
- Easy 3-screw mounting
- Convenient cable-type wiring
SK/SL/SF Beacon Series Video
Untitled Document
|
Size
|
φ150 diameter
|
|
Rated Voltage
|
12-24V DC
|
|
Operating Ambient Temperature
|
-20°C - +50°C
|
|
Operating Ambient Humidity
|
Less than 90% (No condensation)
|
|
Storage Ambient Temperature
|
-30°C - +60°C
|
|
Storage Ambient Humidity
|
Less than 90% (No condensation)
|
|
Mounting Location
|
Indoor/Outdoor
|
|
Mounting Direction
|
Indoor: Upright, Inverted, Sideways
Outdoor: Upright
|
|
Protection Rating
|
*Environmental Condition: Upright
IP23
|
|
Rotation Flashing Rate (Typ.)
|
Blinking (180 flashes per minute), Triple Flash (120 flashes per minute)
|
|
Mass (Typ.)
|
0.86kg
|
|
Conformity Standards
|
UL 508, CSA-C22.2 No. 14 (UL File No. E215660)
FCC Part 15, Subpart B Class A, ICES-003 ClassA
RoHS Directive EN50581
|
DOWNLOAD
Specifications_En_(SL15).pdf
|
|
|
