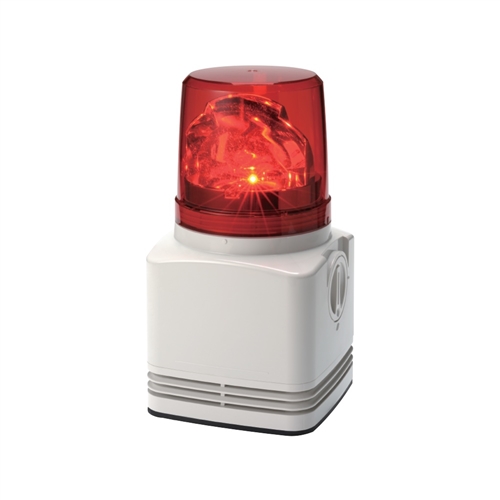

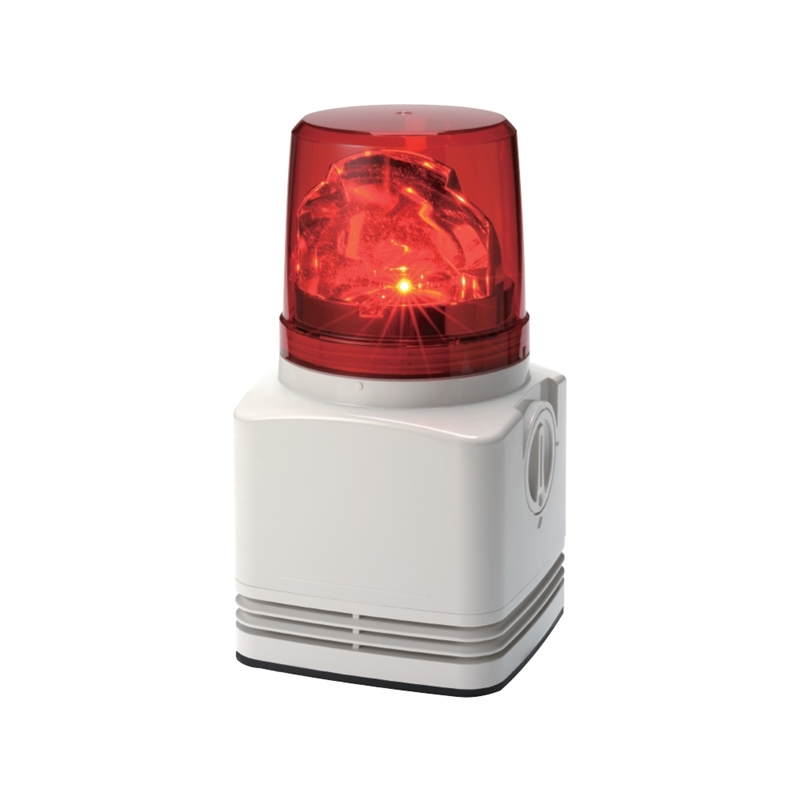

RFT-100A-R
100mm, Rotating Warning Light with 4-channel, 90dB alarm with 32 pre-programmed sounds; Red LED, Non-Returnable
Price:
USD $
509.00
Product Code:
RFT-100A-R
Qty:
Description
Technical Specs
100mm, Rotating Warning Light with 4-channel, 90dB or more alarm with 32 Pre-Programmed Sounds, A type; 100V AC, Off-white body, Red LED; special order, non-returnable
· Rotary Mechanism: Brushless motor and bearing mechanism
· Installation: Indoors—upright, inverted, sideways; Outdoors—upright only
· IP54 rating · upright direction only
· Dome: Superior impact and heat resistant polycarbonate resin
· Installation pitch circle 100mm diameter
SIZE
100mm
OPERATING VOLTAGES
100V AC
FUNCTIONS
- Rotating
- Brushless Motor and Bearing Mechanism
MOUNTING
Direct mount
BODY STYLE
Square
BODY COLOR
Off-white
PROTECTION RATINGS
IP54 (upright direction only)
MATERIAL
Polycarbonate Resin
DOWNLOAD
RFT_Specifications.pdf
