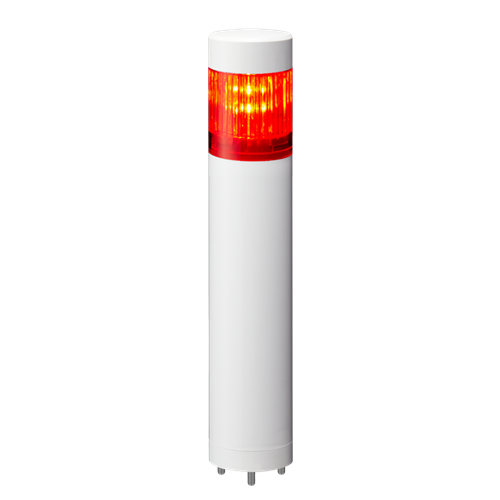

40mm, 1-tier Stack Light, UL, IP65, 100-240V AC, Direct Mount with Cable, No Flashing/Buzzer, Off-white body with Red LED Module
- A sleek, smooth form factor and a rugged body construction for performance in harsh environments, carrying an IP65 protection rating
- A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.
LR4-1M2WJNW-R
LR4 Direct Mount Bottom View
LR Direct Mount Nuts (Included)
LR Series Line Up
|
Operating Ambient Temperature
|
-20°C - +50°C
|
|
Operating Humidity Range
|
90% RH or less, no condensation
|
|
Storage Temperature Range
|
-30°C - +60°C
|
|
Storage Humidity Range
|
90% RH or less, no condensation
|
|
Mounting Location
|
Indoor Use
|
|
Mounting Direction
|
Upright Position
|
|
Protection Rating*1
|
IP65 |
|
Environmental Conditions
|
Upright Position
|
|
Insulation Resistance
|
More than 1MΩ at 500V DC between live part and non-current carrying metallic part |
|
Withstand Voltage
|
M2: 1500V AC applied for 1 min between live part and non-current carrying metallic part |
|
|
|
Transistor Output
|
AC100 - 240V is NPN only
|
|
Conformity Standards
|
- UL 508, CSA-C22.2 No.14
- FCC Part 15 Subpart B Class A
- RoHS Directive (EN 50581)
- EMC Directive (EN 61000-6-4, EN 61000-6-2)
- Low Voltage Directive (IEC/EN 60947-5-1, EN62471) |
DOWNLOAD
LR_Specifications_AC_Type_(En).pdf
|
|
|
 |
|
 |
|
