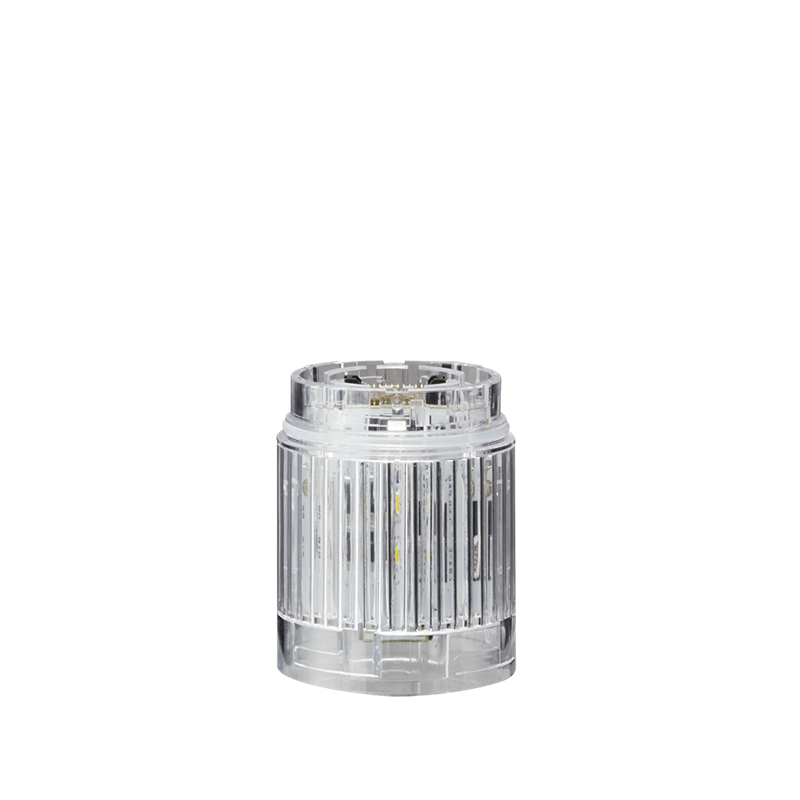

LR4, Red LED module, Clear lens, Non-cancellable, non-returnable
- Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output)
- A sleek, smooth form factor and a rugged body construction for performance in harsh environments, carrying an IP65 protection rating.
- A modular, “Twist and Lock”, design to easily customize and field configure LED units

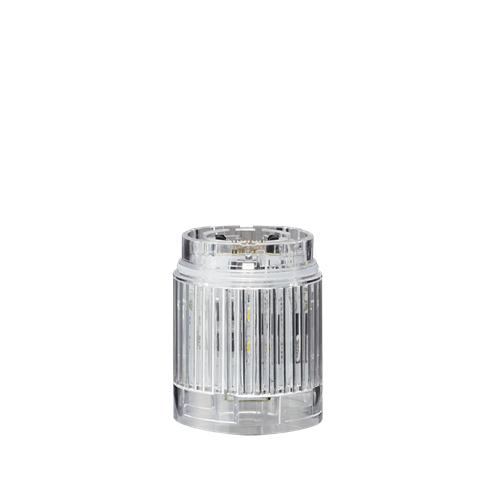

LR4-E-RZ - LR4 Red LED, Clear Module
LR4-E-RZ

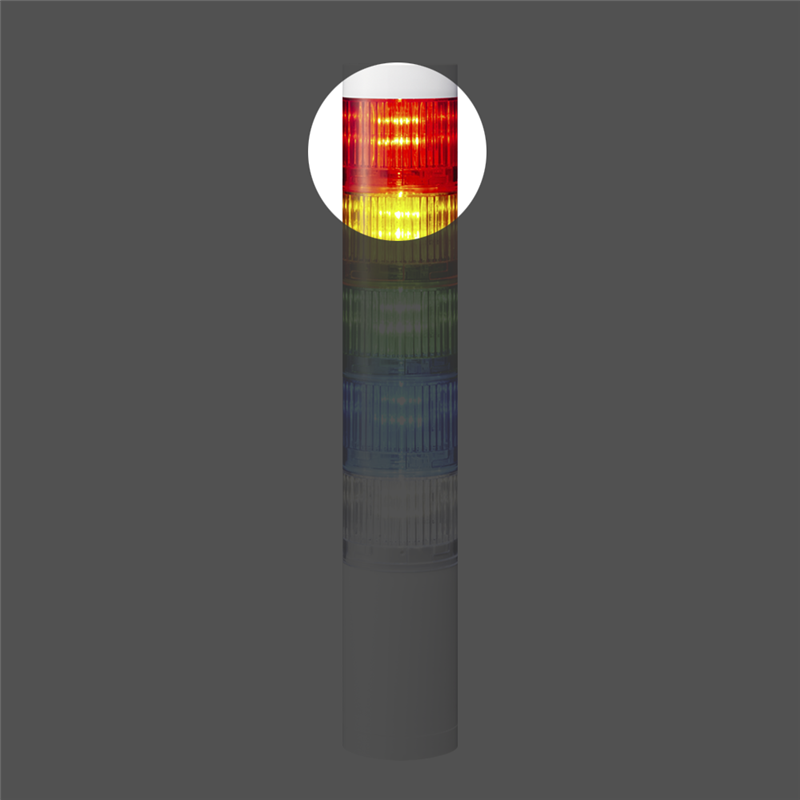

LR Series Lineup
|
Operating Ambient Temperature
|
-20℃ - +50℃
|
|
Operating Humidity Range
|
90% RH or less, no condensation
|
|
Mounting Location
|
Indoor Use
|
|
Mounting Direction
|
Upright Position
|
|
Outer Dimension
|
Width: 40mm
Height: 40mm
|
|
Conformity Standards
|
- UL 508, CSA-C22.2 No.14
- RoHS Directive (EN 50581)
- EMC Directive (EN 61000-6-4, EN 61000-6-2)
|
DOWNLOAD
LR_Specifications_LED Unit (En).pdf
|
|
|
 |
|
 |
