LR5-102WEBW-R

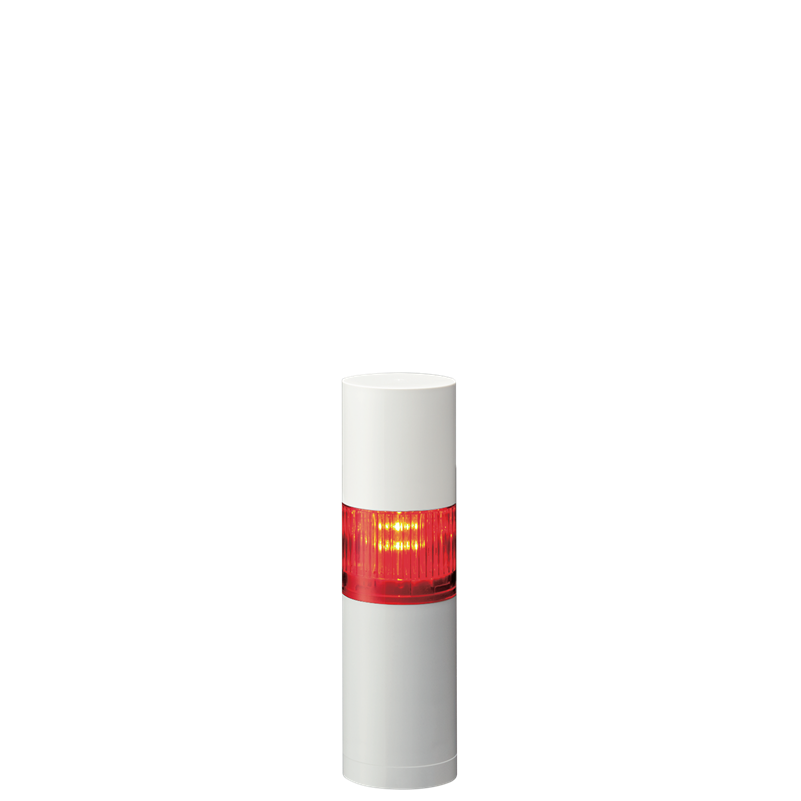

1-tier 50mm diameter Signal Tower with LAN Connection; Direct Mount Off-white body with Red LED and Buzzer

Price: USD $307.00

Quantity in Stock:(Out of Stock)

Product Code: LR5-102WEBW-R

Qty:

Email me when Back-In-Stock

Description

Technical Specs

50mm diameter, IP65, 24V DC, Off-white, direct mount Signal Tower with Red LED, Buzzer module, and LAN connection

Easily connect with network devices including PCs, servers, and network cameras. Simplify operations by monitoring and managing data from multiple signal towers remotely through the network. Send commands from PCs or similar devices to control the signal tower using universal protocols. Easily set up the signal tower from a web browser and/or take advantage of 7 preset patterns for LED control.

RJ-45 port
Compatible with HTTP(S), Modbus/TCP, SOCKET protocols
Direct mount with 3-point screw
IP65 rating
Rated voltage: 24V DC
Buzzer at 85dB
Off-white body
Supports up to 5 LED modules and buzzer
Modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.

Dimension	50mm diameter
Rated Voltage	24V DC
Number of LED Tiers	1
LED Colors	Red
Candela
Buzzer/dB	Yes / 85dB
Unit Weight	Body (0.1kg) + 1 LED (0.04kg) + Buzzer (0.05kg)
Body Color	Off-white
Body/Lens Material	PC

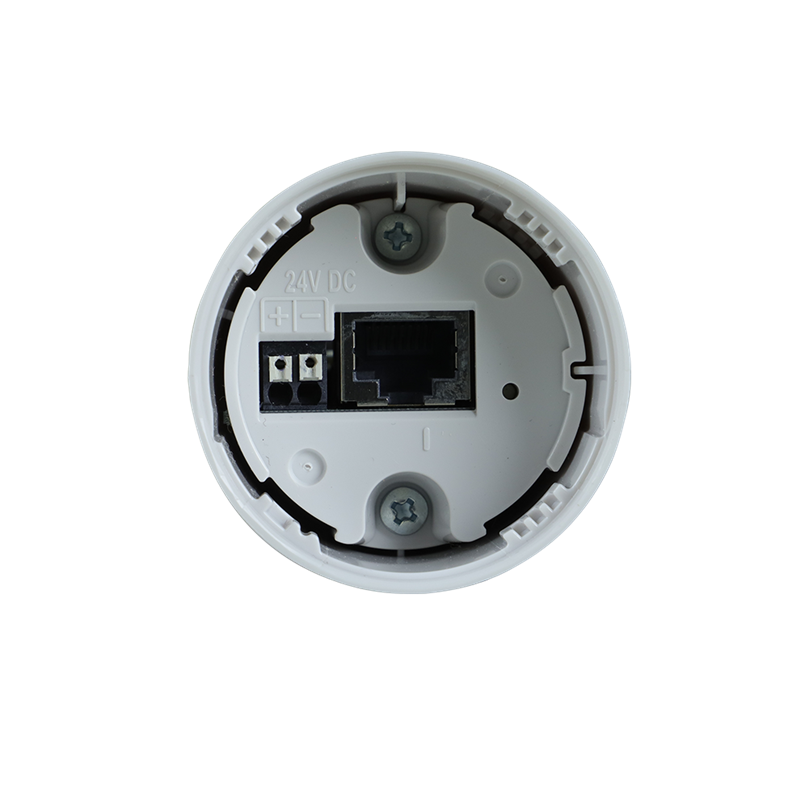

Power Supply	Screwless terminal block (24V DC) Single wire: 0.5~1.2mm diameter \| Stranded wire: 0.2~1.5mm² (AWG24-16)
Ethernet	RJ-45 Connector
Network Communication Format	Ethernet (IEEE802.3 Conformity) 10BASE-T/100BASE-TX (Auto-MDI/MDIX)
Mounting Style	Direct Mount
Mounting Location	Indoors
Mounting Direction	Upright
Protection Rating	IP65
Operating Ambient Temp.	-20℃ ~ +50℃
Operating Ambient Humidity	90% RH or less, no condensation
Storage Ambient Temp.	-30℃ ~ +60℃
Storage Ambient Humidity	90% RH or less, no condensation
Insulation Resistance	More than 1MΩ at 500V DC between live part and non-current carrying metallic part
Withstand Voltage	500V DC applied for 1 minute between live part and non-current carrying metallic part without breaking insulation
Conformity Standards	- UL 508, CAN/CSA C22.2 No. 14-18 - FCC Part 15 Subpart B Class A, ICES-003 Issue 7 (Class A) - EN 61000-6-4, EN 61000-6-2, EN IEC 63000 - KS C 9610-6-4, KS C 9610-6-2
Remarks	・Due to the characteristics of the LED elements, a variation in difference of the color tone and brightness of every product may occur ・Conforms to the CE/UKCA requirements ・UL Recognized Component(File No.E215660) ・Modbus is a registered trademark of Modicon Inc. (Schneider Automation International). ・Microsoft Edge is registered trademark of Microsoft Corporation in the United States and other countries. ・Google Chrome is a trademark or registered trademark of Google LLC.
