Voltage - Signal Tower
>
24V DC - Signal Tower
>
LR5-E-R

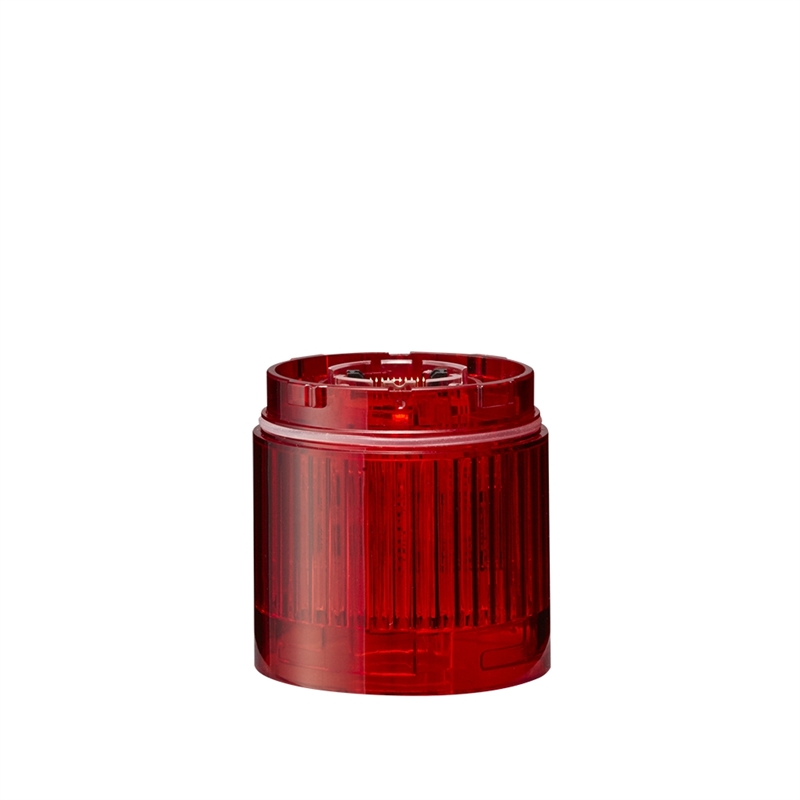

50mm LED Unit for LR Signal Tower, Red
Alternative Views:
Price:
USD $
30.00
Quantity in Stock:260
Product Code:
LR5-E-R
Qty:
Description
Technical Specs
50mm UL CE DC 24V, LED Unit, Red
Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output)
A sleek, smooth form factor and a rugged body construction for performance in harsh environments.

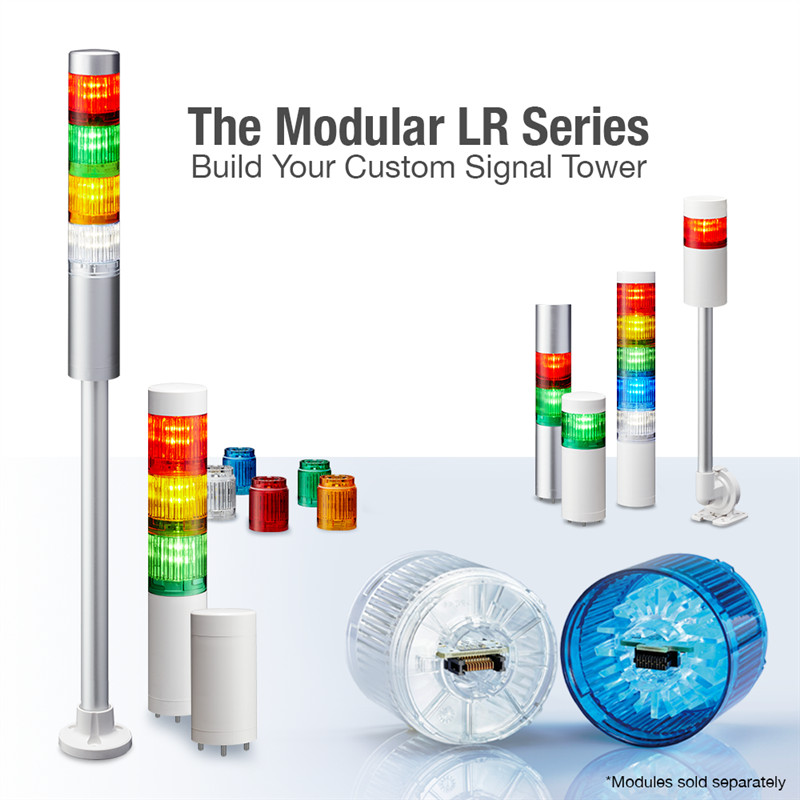

A modular, “Twist and Lock”, design to easily customize and field configure LED units
Operating Ambient Temperature
-20℃ - +50℃
Operating Humidity Range
90% RH or less, no condensation
Mounting Location
Indoor Use
Mounting Direction
Upright Position
Outer Dimension
Width: 50mm
Height: 40mm
Conformity Standards
- UL 508, CSA-C22.2 No.14
- RoHS Directive (EN 50581)
- EMC Directive (EN 61000-6-4, EN 61000-6-2)
DOWNLOAD
LR_Specifications_LED Unit (En).pdf
