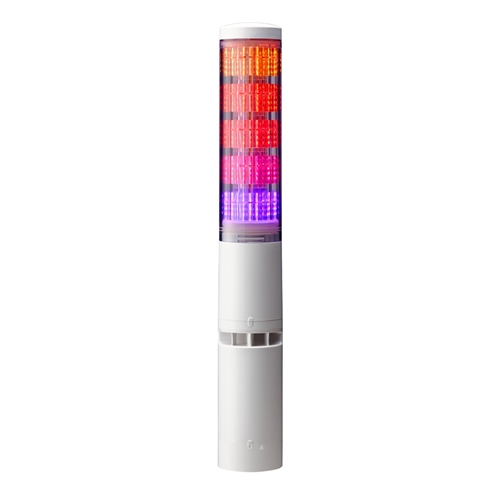

LA6-5DTNWB-POE
Programmable Multi-color Signal Tower, PoE-enabled, Supports Modbus TCP/IP and HTTPS protocols, Direct mount, Off-white body

LA6-5DTNWB-POE - Programmable Signal Tower

Alternative Views:

This programmable signal tower supports PoE and enables customization of 21 colors and 11 alarms to be tailored to your specific signaling needs, with smart functions that can be used for takt time and level monitoring applications.

Price: USD $678.00

Quantity in Stock:(Out of Stock)

Product Code: LA6-5DTNWB-POE

Qty:

Email me when Back-In-Stock

Description

Technical Specs

Ethernet Modbus TCP & TCP/IP, POE (DC48V), Alarm, Direct mount, off-white body

Ethernet connection with PoE (Power over Ethernet) support, enabling single cable installation.
Supports Modbus TCP/IP and HTTPS protocols to work seamlessly with your existing infrastructure indication.
Supports SOCKET communication, an application-level protocol called PNS (developed by PATLITE) to establish a connection between client and server to control.
Easily program the lights and sounds of the LA6 towers by using the free Editor Software.
Includes 21 programmable LED colors and 11 selectable alarms.
Can be set up to operate under 3 main Smart Modes including Time Trigger Mode (for takt time applications), Pulse Trigger Mode, and Single-display Mode (for level monitoring, etc.).
Features a mirroring function for mirroring visual and audible status on up to 8 LA6-POE slave devices in remote locations.
Built-in terminal block as an alternative installation method.

Programmable PoE Connected Signal Tower Video

Improve Stock Picking With LA6-POE

Features
Fully programmable multi-color signal tower to replace the standard stack lights.
Use the LA6 Editor to configure your signal Tower

Time Trigger Mode: Display animations that transition at preset timings. Animations are triggered initially by an input of command and run based on set timings. *Common Applications: Production Cycle Time, Take Time System, Run Light

Pulse Trigger Mode: Display animations or patterns in fixed sequences. Sequences are triggered by inputs, commands or setting elapsed timings. *Common Applications: Pressure or Temperature Display

Single Light Mode: Display one color throughout the tower for easy visibility. Animations transition at preset timings, and are triggered by an input of command and run based on set timings. *Common Applications: Status Indication, Level Monitoring

Other Effects: Display custom patterns from 21 different colors for extreme situations.

11 Alarm Sounds
2400Hz Continuous	2400Hz Rapid Intermittent	2400Hz Long Intermittent	2400Hz Fast Intermittent
3600Hz Continuous	3600Hz Rapid Intermittent	3600Hz Long Intermittent	3600Hz Fast Intermittent
2400Hz 3375Hz Multiplexed	2400Hz 3600Hz Multiplexed	4000Hz 4800Hz Multiplexed
