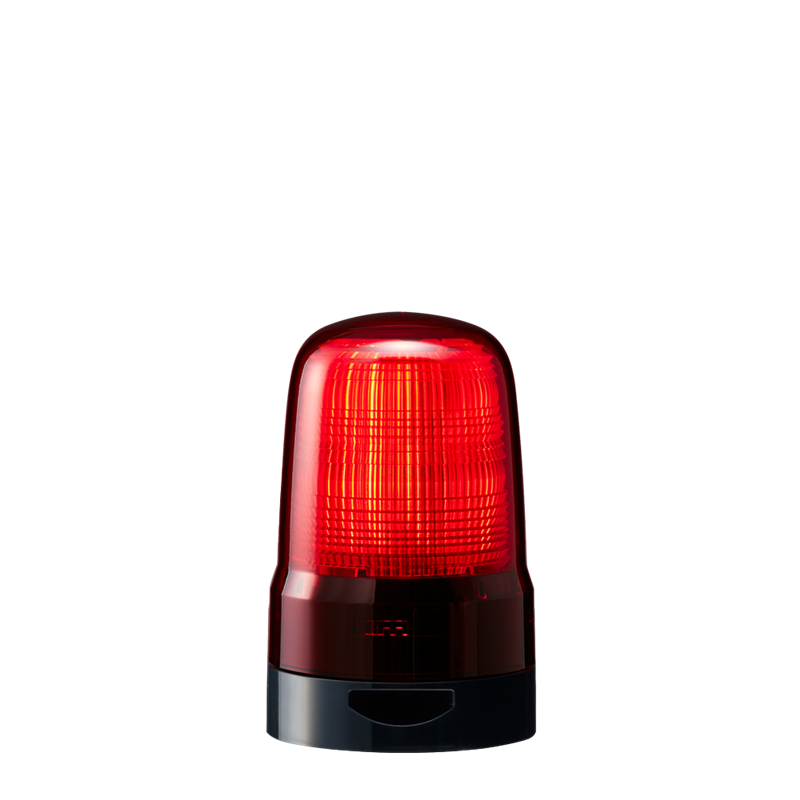

80mm, Flashing Warning Light, 12-24V DC, 2-Screw Mount with Terminal Block, Buzzer, Red LED
- A variety of display patterns including triple flash, blinking, and continuous
- Designed with a newly developed Fresnel lens, presenting a wider light-emitting surface and higher luminous intensity
- Detailed texture of the Fresnel lens achieves even, ambient light distribution around the perimeter of the globe
- Easy 2-screw mounting
- Simple terminal block type wiring
Untitled Document
|
Size
|
φ80 diameter
|
|
Rated Voltage
|
12-24V DC
|
|
Operating Ambient Temperature
|
-20°C - +50°C
|
|
Operating Ambient Humidity
|
Less than 90% (No condensation)
|
|
Storage Ambient Temperature
|
-30°C - +60°C
|
|
Storage Ambient Humidity
|
Less than 90% (No condensation)
|
|
Mounting Location
|
Indoor/Outdoor
|
|
Mounting Direction
|
Indoor: Upright, Inverted, Sideways
Outdoor: Upright
|
|
Protection Rating
|
IP66/NEMA TYPE 4X, 13
|
|
Rotation Flashing Rate (Typ.)
|
Blinking (180 flashes per minute), Triple Flash (120 flashes per minute)
|
|
Mass (Typ.)
|
0.23kg
|
|
Sound Pressure Level (Typ.)
|
86dB (Front direction from the Buzzer Aperture/at 1m
|
|
Conformity Standards
|
UL 508, CSA-C22.2 No. 14 (UL File No. E215660)
FCC Part 15, Subpart B Class A, ICES-003 ClassA
RoHS Directive EN50581
|
