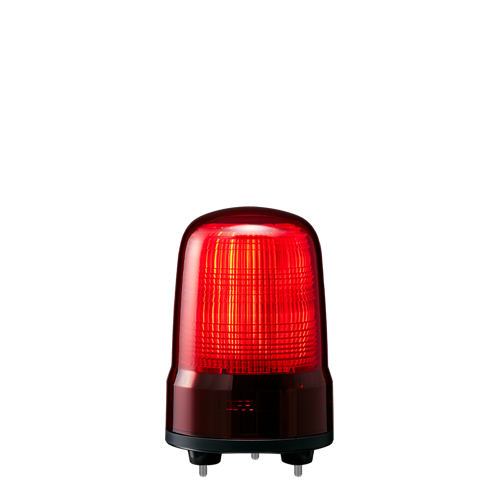

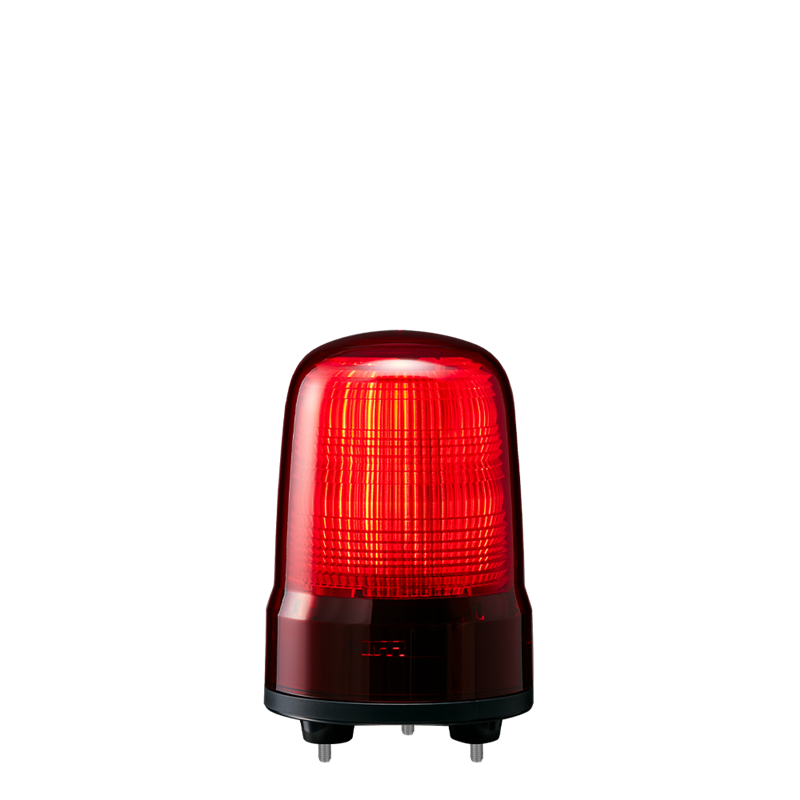

80mm, Flashing Warning Light, UL, 100-240V AC, 3-Screw Mount with Cable, No Buzzer, Red LED
- A variety of display patterns including triple flash, blinking, and continuous
- Designed with a newly developed Fresnel lens, presenting a wider light-emitting surface and higher luminous intensity
- Detailed texture of the Fresnel lens achieves even, ambient light distribution around the perimeter of the globe
- Achieves a protection rating of IP65 with the use of a Rubber Gasket attachment (SZW-102)
- Easy 3-screw mounting
- Convenient cable type wiring
Untitled Document
|
Size
|
80mm |
|
Rated Voltage
|
100-240V AC
|
|
Operating Ambient Temperature
|
-20°C - +50°C
|
|
Operating Ambient Humidity
|
Less than 90% (No condensation)
|
|
Storage Ambient Temperature
|
-30°C - +60°C
|
|
Storage Ambient Humidity
|
Less than 90% (No condensation)
|
|
Mounting Location
|
Indoor/Outdoor
|
|
Mounting Direction
|
Indoor: Upright, Inverted, Sideways
Outdoor: Upright
|
|
Protection Rating
|
IP23 |
|
Rotation Flashing Rate (Typ.)
|
Blinking (180 flashes per minute), Triple Flash (120 flashes per minute)
|
|
Mass (Typ.)
|
0.28kg
|
|
Conformity Standards
|
UL 508, CSA-C22.2 No. 14 (UL File No. E215660)
FCC Part 15, Subpart B Class A, ICES-003 ClassA
RoHS Directive EN50581
|
DOWNLOAD
Specifications_En_(SL08).pdf
|
|
|
 |
|
 |
| Accessories |
SZP-102
NPT Pole Bracket - For 80mm SL, SK, SF models
|
|
SZK-104
Cover for wall mount bracket (SZK-102), Waterproof
|
|
SZK-102
Wall mount bracket for 80mm and 100mm SL, SK, SF models, Stainless steel
|
|
SZW-102
Rubber Gasket, Compatible with 80mm SL, SK, SF models, For 3-screw mounting, Cable type
|
|
|
|
|
|
|
|
|
|
|
|
SZK-101
Wall mount bracket for 80mm and 100mm SL, SK, SF models
|
|
GA0000029-F1
80mm Replacement Lens for SKS/SF08/SL08 Red; Non-Returnable
|
|
|
|
|
|
|
|
|
|
|
|
|
