Diameter (mm) - Signal Tower
>
60mm
>
LR6-E-R+FB295

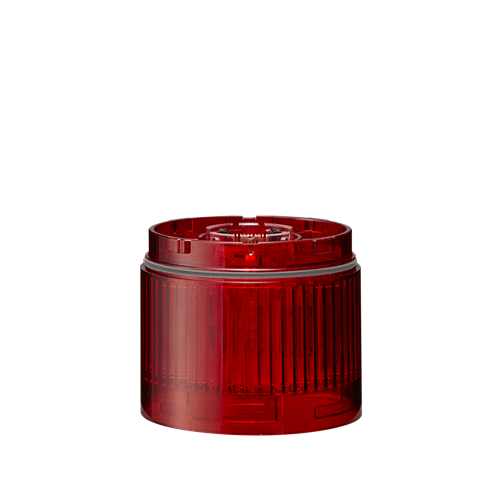

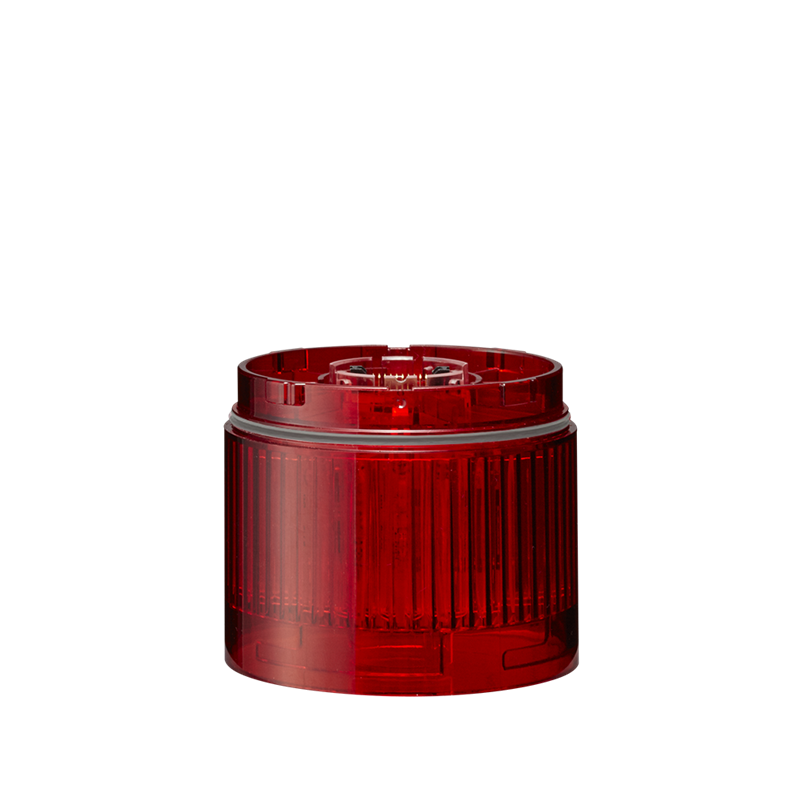

Red LED Module for IP69K Rated Washdown Safe LR6 Signal Tower, 60mm
Alternative Views:
Price:
USD $
36.00
Quantity in Stock:124
Product Code:
LR6-E-R-FB295
Qty:
Description
Technical Specs
60mm LED unit for wash-down safe LR6 stack lights. Red module
Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output)
A modular, “Twist and Lock”, design to easily customize and field configure LED units
A sleek, smooth form factor and a rugged body construction for performance in harsh environments.
IP69K rating for dust proof, high temperature and high pressure wash down.
*LED and flashing/buzzer modules must be used with a
+FB295
base units to maintain IP69K rating.
LR6-E-R+FB295 - IP69K Rated LR6 Red LED Module
IP69K Rated Product Lineup
Operating Ambient Temperature
-20℃ - +50℃
Operating Humidity Range
90% RH or less, no condensation
Mounting Location
Indoor Use
Mounting Direction
Upright Position
Outer Dimension
Width: 60mm
Height: 40mm
Conformity Standards
- UL 508, CSA-C22.2 No.14
- RoHS Directive (EN 50581)
- EMC Directive (EN 61000-6-4, EN 61000-6-2)
DOWNLOAD
LR6-E-FB295_Specifications.pdf
