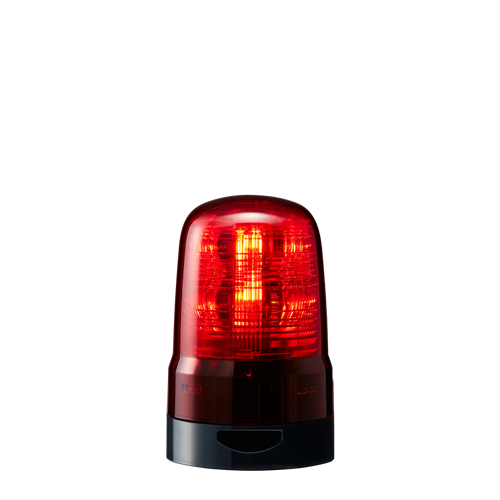

80mm, Multi-Function Warning Light, UL, IP66, 100-240V AC, 2-Screw Mounting with Terminal Block, Buzzer, Red LED
- Equipped with 22 display patterns, ideal for worksites that require multiple, effective status indications
- Designed without the use of a motor, making the beacon maintenance-free
- Produces LED animations including simulated rotation, flashing, and pulsing effects
- Other LED functions including dimming mode and half-side emitting mode for use in darker environments
- Also includes 3 flash and 3 rotation speeds so that the severity of an issue can easily be recognized
- Constructed with a thin and rigid multi-Fresnel lens, capable of collecting and diffusing light more efficiently than a conventional lens
- Easy 2-screw mounting
- Simple terminal block type wiring
Untitled Document
|
Size
|
80mm |
|
Rated Voltage
|
100-240V AC
|
|
Operating Ambient Temperature
|
-20°C - +50°C
|
|
Operating Ambient Humidity
|
Less than 90% (No condensation)
|
|
Storage Ambient Temperature
|
-30°C - +60°C
|
|
Storage Ambient Humidity
|
Less than 90% (No condensation)
|
|
Mounting Location
|
Indoor/Outdoor
|
|
Mounting Direction
|
Indoor: Upright, Inverted, Sideways
Outdoor: Upright
|
|
Protection Rating
|
IP66/NEMA TYPE 4X, 13
|
|
Rotation Flashing Rate (Typ.)
|
180 R.P.M [High Speed], 120 R.P.M. [Middle Speed], 60 R.P.M. [Low Speed]
|
|
Flashing Rate (Typ.)
|
Single Flash (60 flashes per minute), Double Flash (90 flashes per minute)
Triple Flash (120 flashes per minute), Pulse (20 flashes per minute)
|
|
Mass (Typ.)
|
0.28kg
|
|
Sound Pressure Level (Typ.)
|
86dB (Front direction from the Buzzer Aperture/at 1m
|
|
Conformity Standards
|
UL 508, CSA-C22.2 No. 14 (UL File No. E215660)
FCC Part 15, Subpart B Class A, ICES-003 ClassA
RoHS Directive EN50581
|
DOWNLOAD
Specifications_En_(SF08).pdf
|
|
|
 |
|
 |
|
