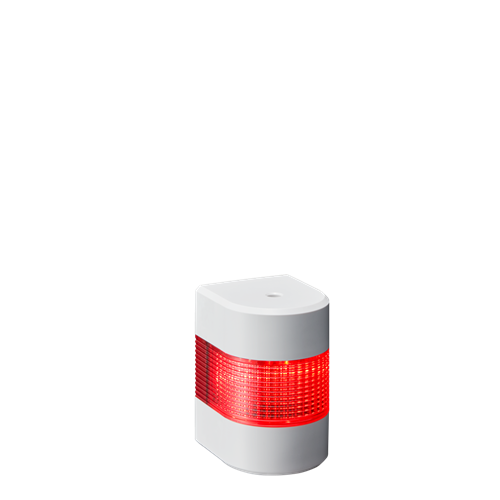

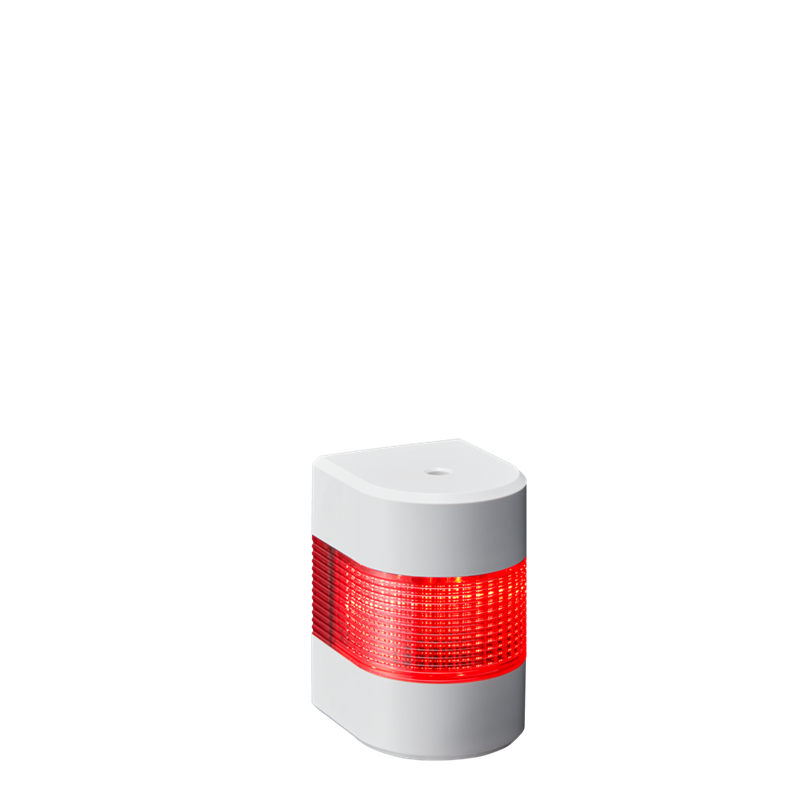

1-tier, 80mm profile, 100-240V AC Wall mount signal tower with continuous/flashing light and buzzer; Off-white body, Red LED
- Installation: Easy vertical and horizontal installation with mounting bracket
- Interchangeable Modules: No re-wiring even after installation
- Main body: Made of PC resin
- Lens: Superior impact and heat resistant polycarbonate resin for superior durability and light transmission
- NPN/PNP compatible
- LED module colors: red
WME-1M2DFB-R

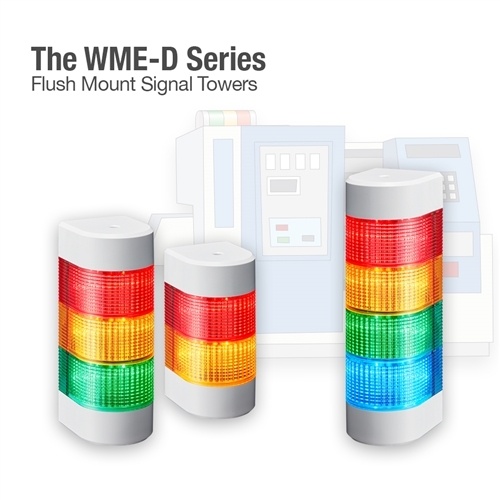

WME-D Series Lineup
DIMENSIONS
|
80mm profile
|
OPERATING VOLTAGES
|
100-240V AC |
FUNCTIONS
|
Continuous/flashing light and buzzer |
MOUNTING
|
- Pre-assembled, pre-wired
- Lenses are interchangeable
- Not stackable after purchase
|
BODY STYLE
|
Wall mount only: includes mounting bracket
|
BODY COLOR
|
off-white |
STACKABLE TIERS
|
1 tier
|
MODULE COLORS
|
Red |
AUDIBLE STYLE
|
One Alarm: selectable, alternating two-tone, 80dB (at 1m)
|
CONFORMITY STANDARDS
|
- CE Marking
- UL Component Recognition (US)
|
PROTECTION RATINGS
|
IP54 |
DOWNLOAD WME-D_Sepcifications
|
|
|
