80mm profile 3-Tier wall mount LED signal tower, 24V DC, continuous, flashing, alarm, ivory body. LED mod: red, green, amber
- FB type: Built-in audible alarm up to 93dB (at 1m).
- Installation: Easy vertical and horizontal installation with mounting bracket.
- Interchangeable Modules: No re-wiring even after installation.
- Main body: Made of PC resin.
- Lens: Superior impact and heat resistant polycarbonate resin for superior durability and light transmission.
- NPN/PNP Compatible.
- LED Module Colors: Red, Amber, Green.

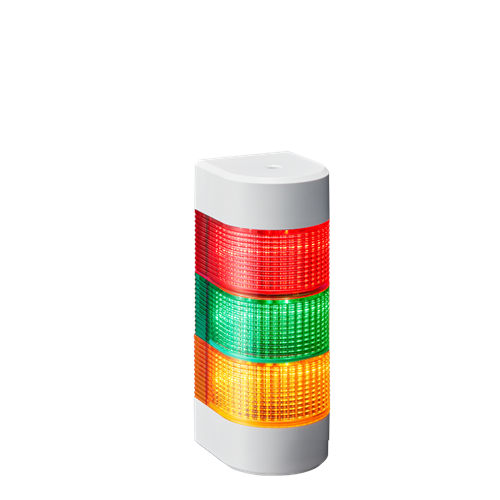

WME-302DFB-RGY
WME Back View
WME-D Series Lineup
|
DIMENSIONS
|
80mm profile
|
|
OPERATING VOLTAGES
|
24V DC
|
|
FUNCTION
|
Continuous, Flashing, Alarms
|
|
MOUNTING
|
- Pre-assembled, pre-wired
- Lenses are interchangeable
- Not stackable after purchase
|
|
BODY STYLE
|
Wall mount only: includes mounting bracket
|
|
BODY COLOR
|
Body: Ivory |
|
STACKABLE TIERS
|
3 tier
|
|
MODULE COLORS
|
- Red
- Green
- Amber
|
|
AUDIBLE STYLE
|
One Alarm: selectable, alternating two-tone, 80dB (at 1m)
|
|
CONFORMITY STANDARDS
|
- CE Marking
- UL Component Recognition (US)
- c-UL Component Recognition (Canada)
|
|
PROTECTION RATINGS
|
IP-54 ( Normal )
|
DOWNLOAD
WME-D_Sepcifications
|
|
|
