Diameter (mm) - Signal Tower
>
30mm
>

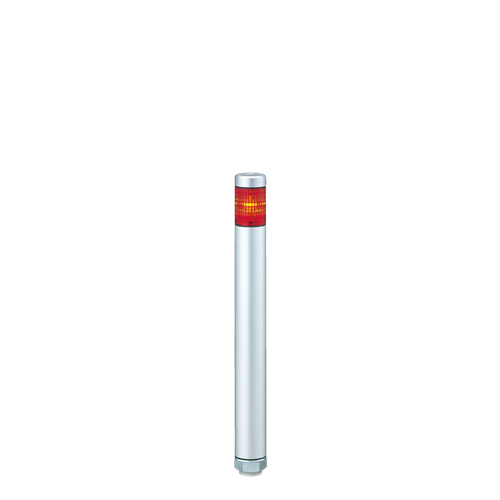

MP-102-R
30mm 1-Tier LED Signal Tower, 24V AC/DC, Direct Mount, Silver Body, LED: Red
Alternative Views:
Price:
USD $
112.00
Quantity in Stock:
(Out of Stock)
Product Code:
MP-102-R
Qty:
Email me when Back-In-Stock
Description
Technical Specs
30mm diameter 1-Tier Stack Light with UL, IP65 rating, and 24V AC/DC
Steady light only, direct mount, 220mm tall silver body base with LED module: Red
PATLITE's Exclusive Hybrid Prism Cut Lens: For enhanced visibility from any direction and distance.
Double Insulation: For enhanced durability and safety in the work environment.
Installation: Direct mount with a single hole.
Interchangeable LED module: No re-wiring even after installation.
Main Body: Superior impact and heat resistant ABS resin.
Lens: Superior weather resistant and light translucent AS resin.
MP-102-R
MP Cable Type Bottom View
Nut and washers for MP
MP Series Lineup
DIMENSIONS
- 30mm diameter
OPERATING VOLTAGES
- 24V AC/DC
FUNCTIONS
- Continuous Only (no flashing)
- Dry contact closure such as switches or relay contacts
- Open-collector transistor (NPN or PNP) for DC24V
- Direct voltage control
MOUNTING
- Direct mount only: includes M22 mounting nut and sealing gasket
BODY STYLE
- Pre-assembled, pre-wired
- Interchangeable and stackable module after purchase
BODY COLOR
- Body: Silver
STACKABLE TIERS
- Up to 5 modules can be stacked
MODULE COLORS
- Red
CONFORMITY STANDARDS
- CE Marking
- UL Component Recognition (US)
- c-UL Component Recognition (Canada)
- RoHS
PROTECTION RATINGS
- IP 65
DOWNLOAD
MP_Specifications+(En).pdf
