Flashing 100mm Beacon,100-240V AC, Terminal Block, Red LED with 88dB buzzer
- A variety of display patterns including triple flash, blinking, and continuous
- Designed with a newly developed Fresnel lens, presenting a wider light-emitting surface and higher luminous intensity
- Detailed texture of the Fresnel lens achieves even, ambient light distribution around the perimeter of the globe
- Easy 2-screw mounting
- Achieves a protection rating of IP65 with the use of a Rubber Gasket attachment (SZW-103)
- Convenient terminal block wiring

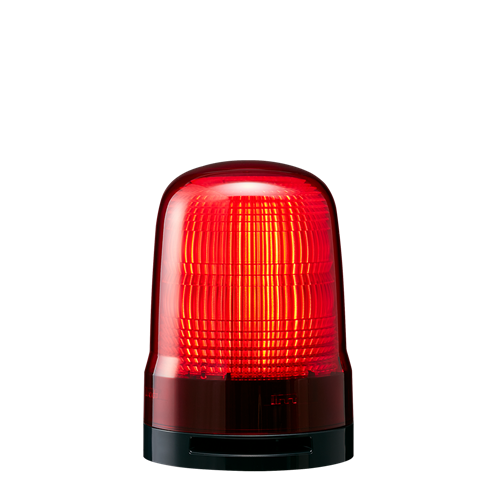

SL10-M2KTB-R
SL10-M2KTB - Bottom View
SL10-M2KTB-R - Box Contents
Beacon Series
SK/SL/SF Beacon Series Video
Untitled Document
|
Size
|
φ100 diameter
|
|
Rated Voltage
|
100-240V AC
|
|
Operating Ambient Temperature
|
-20°C - +50°C
|
|
Operating Ambient Humidity
|
Less than 90% (No condensation)
|
|
Storage Ambient Temperature
|
-30°C - +60°C
|
|
Storage Ambient Humidity
|
Less than 90% (No condensation)
|
|
Mounting Location
|
Indoor/Outdoor
|
|
Mounting Direction
|
Indoor: Upright, Inverted, Sideways
Outdoor: Upright
|
|
Protection Rating
|
*Environmental Condition: Upright
IP23 (Excluding Terminal Block Aperture)
IP65 (SZW-103[Rubber Gasket] Attachment)
|
|
Rotation Flashing Rate (Typ.)
|
Blinking (180 flashes per minute), Triple Flash (120 flashes per minute)
|
|
Mass (Typ.)
|
0.40kg
|
|
Sound Pressure Level (Typ.)
|
88dB (Front direction from the Buzzer Aperture/at 1m
|
|
Conformity Standards
|
UL 508, CSA-C22.2 No. 14 (UL File No. E215660)
FCC Part 15, Subpart B Class A, ICES-003 ClassA
RoHS Directive EN50581
|
DOWNLOAD
Specifications_En_(SL10).pdf
|
|
|
 |
|
 |
| Accessories |
SZK-101
Wall mount bracket for 80mm and 100mm SL, SK, SF models
|
|
GA0000033-F1
100mm Replacement Lens for SKH/SF10/SL10 Red; Non-Returnable
|
|
SZP-101
Pole Bracket - For 100mm SL, SK, SF models
|
|
SZK-102
Wall mount bracket for 80mm and 100mm SL, SK, SF models, Stainless steel
|
|
|
|
|
|
|
|
|
|
|
|
SZP-103
NPT Bracket - For 100mm SL, SK, SF models. 1/2" NPT internal threads
|
|
SZW-103
Rubber Gasket, Compatible with 100mm SL, SK, SF models, For 3-screw mounting, Cable type
|
|
|
|
|
|
|
|
|
|
|
|
|
