SF08-M1JN-R
80mm, Multi-Function Signal Beacon, 12-24V DC, Red

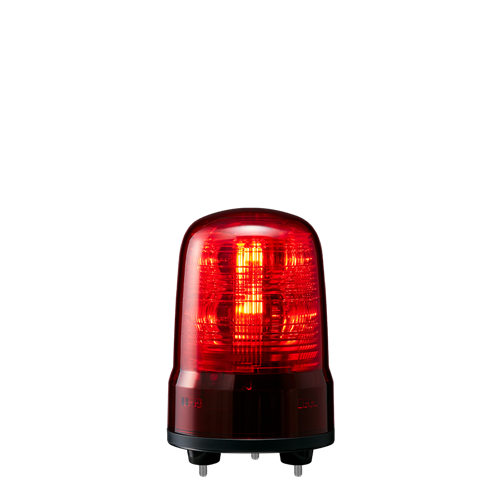

SF08-M1JN-R - Multi-function Signal Beacon

Alternative Views:

Price: USD $181.00

Quantity in Stock:(Out of Stock)

Product Code: SF08-M1JN-R

Qty:

Email me when Back-In-Stock

Description

Technical Specs

80mm diameter, Multi-Function Warning Light, UL, IP66, 12-24V DC, 3-Screw Mounting with Cable, No Buzzer, Red LED

Equipped with 22 display patterns, ideal for worksites that require multiple, effective status indications
Designed without the use of a motor, making the beacon maintenance-free
Produces LED animations including simulated rotation, flashing, and pulsing effects
Other LED functions including dimming mode and half-side emitting mode for use in darker environments
Also includes 3 flash and 3 rotation speeds so that the severity of an issue can easily be recognized
Constructed with a thin and rigid multi-Fresnel lens, capable of collecting and diffusing light more efficiently than a conventional lens
Easy 3-screw mounting
Convenient cable type wiring

SK/SL/SF Beacon Series Video

Features
Select from 22 flash patterns to indicate various statuses at your work field.
The light pattern can easily be configured by adjusting the rotary switch and wiring channels.
