Multi-function 80mm Signal Beacon, Red, 12-24V DC

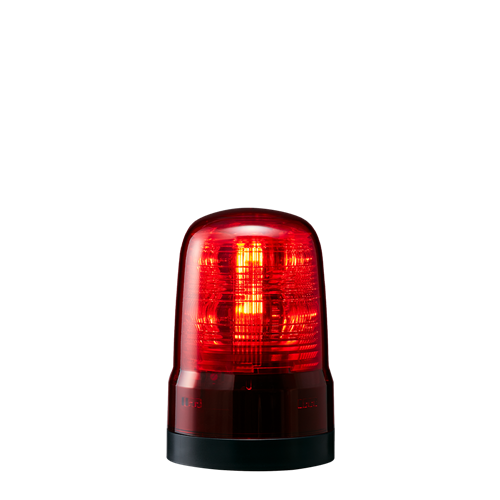

SF08-M1KTN-R  - Multi-function Signal Beacon (Red)

Alternative Views:

Price: USD $175.00

Quantity in Stock:(Out of Stock)

Product Code: SF08-M1KTN-R

Description Technical Specs
80mm, Multi-function Warning Light, UL, IP66, 12-24V DC, Terminal Block, Red LED

  • Equipped with 22 display patterns, ideal for worksites that require multiple, effective status indications
  • Designed without the use of a motor, making the beacon maintenance-free
  • Produces LED animations including simulated rotation, flashing, and pulsing effects
  • Other LED functions including dimming mode and half-side emitting mode for use in darker environments
  • Also includes 3 flash and 3 rotation speeds so that the severity of an issue can easily be recognized
  • Constructed with a thin and rigid multi-Fresnel lens, capable of collecting and diffusing light more efficiently than a conventional lens
  • Easy 2-screw mounting
  • Simple terminal block type wiring

SK/SL/SF Beacon Series Video
Select from 22 flash patterns to indicate various statuses at your work field.
The light pattern can easily be configured by adjusting the rotary switch and wiring channels.

Triple Flash
