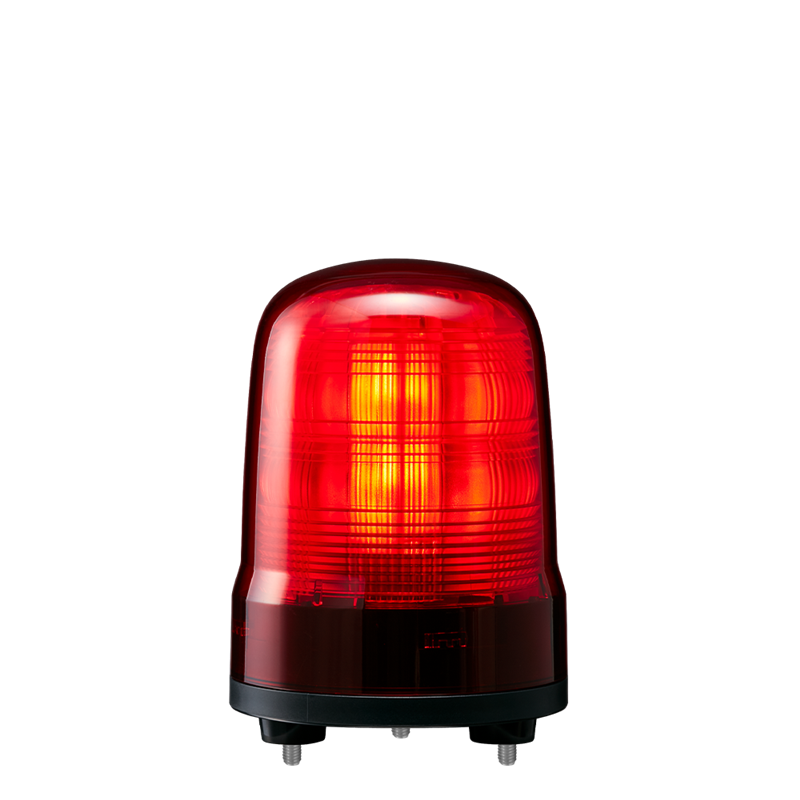

100mm, Multi-Function Warning Light, UL, 100-240V AC, 3-Screw Mount with Cable, No Buzzer, Red LED
- Equipped with 22 display patterns, ideal for worksites that require multiple, effective status indications
- Designed without the use of a motor, making the beacon maintenance-free
- Produces LED animations including simulated rotation, flashing, and pulsing effects
- Other LED functions including dimming mode and half-side emitting mode for use in darker environments
- Also includes 3 flash and 3 rotation speeds so that the severity of an issue can easily be recognized
- Constructed with a thin and rigid multi-Fresnel lens, capable of collecting and diffusing light more efficiently than a conventional lens
- Achieves a protection rating of IP65 with the use of a Rubber Gasket attachment (SZW-103)
- Easy 3-screw mounting
- Convenient cable-type wiring
- Use with rubber gasket for higher IP rating
Untitled Document
Size
|
100mm |
Rated Voltage | 100-240V AC |
Operating Ambient Temperature
|
-20°C - +50°C
|
Operating Ambient Humidity
|
Less than 90% (No condensation)
|
Storage Ambient Temperature
|
-30°C - +60°C
|
Storage Ambient Humidity
|
Less than 90% (No condensation)
|
Mounting Location
|
Indoor/Outdoor
|
Mounting Direction
|
Indoor: Upright, Inverted, Sideways
Outdoor: Upright
|
Protection Rating
|
*Environmental Condition: Upright
IP23 (Excluding Terminal Block Aperture) IP65 (SZW-103[Rubber Gasket] Attachment)
|
Rotation Flashing Rate (Typ.)
|
180 R.P.M [High Speed], 120 R.P.M. [Middle Speed], 60 R.P.M. [Low Speed]
|
Flashing Rate (Typ.)
|
Single Flash (60 flashes per minute), Double Flash (90 flashes per minute)
Triple Flash (120 flashes per minute), Pulse (20 flashes per minute)
|
Mass (Typ.)
|
0.43kg
|
Conformity Standards
|
UL 508, CSA-C22.2 No. 14 (UL File No. E215660)
FCC Part 15, Subpart B Class A, ICES-003 ClassA RoHS Directive EN50581
|
DOWNLOAD Specifications_En_(SF10).pdf
|
|
|
|
|
|
Accessories |
SZW-103 Rubber Gasket, Compatible with 100mm SL, SK, SF models, For 3-screw mounting, Cable type
|
|
SZK-102 Wall mount bracket for 80mm and 100mm SL, SK, SF models, Stainless steel
|
|
SZP-103 NPT Bracket - For 100mm SL, SK, SF models. 1/2" NPT internal threads
|
|
SZK-104 Cover for wall mount bracket (SZK-102), Waterproof
|
|
|
|
|
|
|
|
|
|
SZP-101 Pole Bracket - For 100mm SL, SK, SF models
|
|
SZK-101 Wall mount bracket for 80mm and 100mm SL, SK, SF models
|
|
GA0000033-F1 100mm Replacement Lens for SKH/SF10/SL10 Red; Non-Returnable
|
|
|
|
|
|
|
|
|
|
|
|
