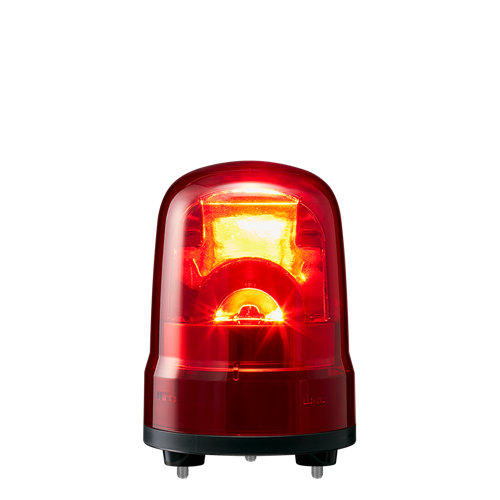

100mm, Rotating Signal Beacon, 12-24V DC, Cable, Red
- Features a brushless motor construction, unique for producing minimal heating and having a long motor life
- At 120 rotations per minute, the beacon has a distinct light rotation suitable for providing efficient visual signaling in emergency situations
- Designed with a dual-reflector, which efficiently distributes LED light to create bright, even light output
- Wider light-emitting surface compared to previous models for maximum visibility
- Achieves a protection rating of IP65 with the use of a Rubber Gasket attachment (SZW-103)
- Convenient cable-type wiring
SK/SL/SF Beacon Series Video
Untitled Document
|
Size
|
100mm |
| Rated Voltage |
12-24V DC
|
| Operating Ambient Temperature |
-10°C - +50°C |
| Operating Ambient Humidity |
Less than 90% (No condensation)
|
| Storage Ambient Temperature |
-20°C - +60°C
|
| Storage Ambient Humidity |
Less than 90% (No condensation)
|
| Mounting Location |
Indoor/Outdoor
|
| Mounting Direction |
Indoor: Upright, Inverted, Sideways
Outdoor: Upright
|
| Protection Rating |
*Environmental Condition: Upright
IP23 (Excluding Terminal Block Aperture)
IP65 (SZW-103[Rubber Gasket] Attachment)
|
| Rotation Flashing Rate (Typ.) |
120 R.P.M.
|
| Mass (Typ.) |
0.33kg
|
|
Conformity Standards
|
UL 508, CSA-C22.2 No. 14 (UL File No. E215660)
FCC Part 15, Subpart B Class A, ICES-003 ClassA
RoHS Directive EN50581
|
DOWNLOAD
Specifications_En_(SKH).pdf
|
|
|
 |
|
 |
| Accessories |
GA0000033-F1
100mm Replacement Lens for SKH/SF10/SL10 Red; Non-Returnable
|
|
SZP-101
Pole Bracket - For 100mm SL, SK, SF models
|
|
SZP-103
NPT Bracket - For 100mm SL, SK, SF models. 1/2" NPT internal threads
|
|
SZ-007
Wall Mount Bracket for Beacons
|
|
|
|
|
|
|
|
|
|
|
|
SZK-101
Wall mount bracket for 80mm and 100mm SL, SK, SF models
|
|
SZW-103
Rubber Gasket, Compatible with 100mm SL, SK, SF models, For 3-screw mounting, Cable type
|
|
SZK-102
Wall mount bracket for 80mm and 100mm SL, SK, SF models, Stainless steel
|
|
SZK-104
Cover for wall mount bracket (SZK-102), Waterproof
|
|
|
|
|
|
|
|
|
|
|
|
|
