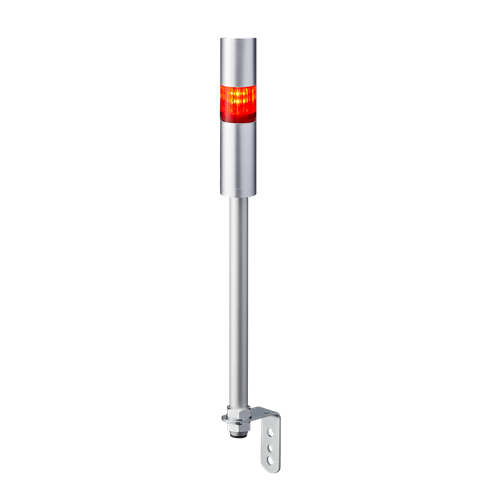

40mm, 1-tier Stack Light, UL, IP65, 24V DC, Pole Mount with L Bracket and Cable, Flashing/Buzzer, Silver body with Red LED
- Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output)
- Re-engineered, completely enclosed sound module, maintains substantial water and dust protection while producing loud, omni-directional sound. (LR4: 85dB at 1m)
- A sleek, smooth form factor and a rugged body construction for performance in harsh environments.
- A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.
LR4-102LJBU-R
Bottom view of L-bracket type
LR Series Line up
Untitled Document
Untitled Document
| Operating Ambient Temperature |
-20℃ - +50℃ |
| Operating Humidity Range |
90% RH or less, no condensation |
| Storage Temperature Range |
-30℃ - +60℃ |
| Storage Humidity Range |
90% RH or less, no condensation |
| Mounting Location |
Indoor Use |
| Mounting Direction |
Upright Position |
| Protection Rating |
IP65 |
| Environmental Conditions |
Upright Position |
| Insulation Resistance |
More than 1MΩ at DC500V between the power input lead and chassis |
| Withstand Voltage |
AC 500V for 1 minute between terminals and chassis without breaking insulation (M2: AC1500V for 1 min.) |
| Flash Rate |
60 ±2 Flashes / min |
| Sound Level |
LR4Typ. 85dB |
| Sound Reduction* |
ab. -10dB reduction |
| Environmental Conditions |
Buzzer Sound No.4 (Sweep) from all directions at a 1m distance |
| Buzzer Sound |
4 patterns* No.1Rapid Intermittent sound No.2Continuous sound No.3Rapid Hi-low No.4Sweep sound |
| Transistor Output |
NPN / PNP (AC100 - 240V is NPN only) |
| Conformity Standards |
- UL 508, CSA-C22.2 No.14
- FCC Part 15 Subpart B Class A
- RoHS Directive (EN 50581)
- EMC Directive (EN 61000-6-4, EN 61000-6-2)
- KC (KN 61000-6-4, KN 61000-6-2)
|
* Dependent on DIP Switch Setting
DOWNLOAD
LR_Specifications_24V_DC Type (En).pdf
LR_Specifications_LED Unit (En).pdf
LR_Specifications_Buzzer Unit (En).pdf
|
|
|
 |
|
 |
| Accessories |
LR4-E-GZ
40mm LED Unit for LR Signal Tower, Green with Clear lens; Non-Returnable
|
|
LR4-E-C
40mm LED Unit for LR Signal Tower, White; Non-Returnable
|
|
LR4-E-R
40mm LED Unit for LR Signal Tower, Red;
Non-Returnable
|
|
LR4-E-RZ
40mm LED Unit for LR Signal Tower, Red with Clear lens; Non-Returnable
|
|
|
|
|
|
|
|
|
|
|
|
LR4-E-G
40mm LED Unit for LR Signal Tower, Green; Non-Returnable
|
|
LR4-BU
40mm Buzzer Unit for LR Signal Tower, Silver
|
|
SZP-003K
Surface Mount pole bracket, 2 Screws, Black
|
|
SZL-001
Wall mount L bracket, silver
|
|
|
|
|
|
|
|
|
|
|
|
SZP-090U
1/2" NPT adaptor for LR4 and LR5. Aluminum, silver.
|
|
|
|
|
|
|
|
|
|
|
|
|
