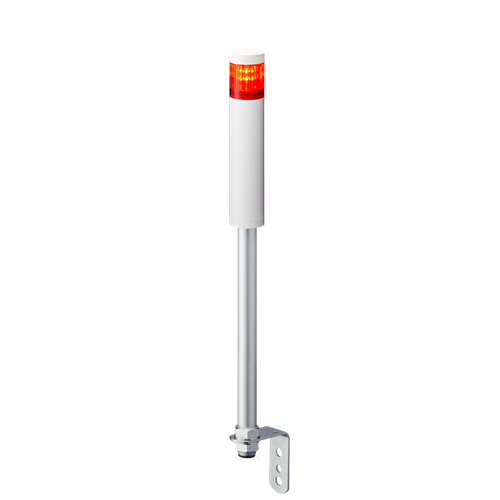

40mm, 1-tier Stacking Light, UL, IP65,100-240V AC, Pole Mount with L Bracket and Cable, No Flashing/Buzzer, Off-white body with Red LED Module
- A sleek, smooth form factor and a rugged body construction for performance in harsh environments.
- A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.
LR4-1M2LJNW-R
Bottom view of L-bracket type
LR Series Line up
|
Operating Ambient Temperature
|
-20℃ - +50℃
|
|
Operating Humidity Range
|
90% RH or less, no condensation
|
|
Storage Temperature Range
|
-30℃ - +60℃
|
|
Storage Humidity Range
|
90% RH or less, no condensation
|
|
Mounting Location
|
Indoor Use
|
|
Mounting Direction
|
Upright Position
|
|
Protection Rating
|
IP65
|
|
Environmental Conditions
|
Upright Position
|
|
Insulation Resistance
|
More than 1MΩ at 500V DC between live part and non-current carrying metallic part
|
|
Withstand Voltage
|
M2: 1500V AC applied for 1 minute between live part and non-current carrying metallic part without breaking insulation
|
|
Transistor Output
|
NPN / PNP (AC100 - 240V is NPN only)
|
|
Conformity Standards
|
- UL 508, CSA-C22.2 No.14
- FCC Part 15 Subpart B Class A
- RoHS Directive (EN 50581)
- EMC Directive (EN 61000-6-4, EN 61000-6-2)
- Low Voltage Directive (IEN/EN60947-5-1,EN62471)
|
* Dependent on DIP Switch Setting
