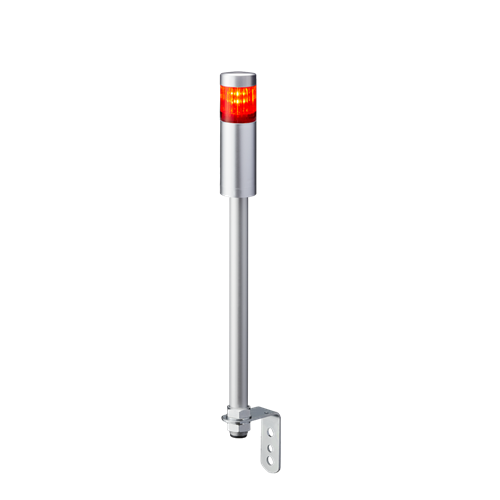

40mm, 1-tier Stack Light, UL, IP65, 24V DC, Pole Mount with L Bracket and Cable, No Flashing/Buzzer, Silver Body, Red LED Module
- Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output)
- A sleek, smooth form factor and a rugged body construction for performance in harsh environments.
- A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.
LR4-102LJNU-R
Bottom view of L-bracket type
LR Series Line up
Untitled Document
|
Operating Ambient Temperature
|
-20℃ - +50℃
|
|
Operating Humidity Range
|
90% RH or less, no condensation
|
|
Storage Temperature Range
|
-30℃ - +60℃
|
|
Storage Humidity Range
|
90% RH or less, no condensation
|
|
Mounting Location
|
Indoor Use
|
|
Mounting Direction
|
Upright Position
|
|
Protection Rating
|
IP65 |
|
Environmental Conditions
|
Upright Position
|
|
Insulation Resistance
|
More than 1MΩ at 500V DC between the power input lead and chassis
|
|
Withstand Voltage
|
500V AC for 1 minute between terminals and chassis without breaking insulation (M2: 1500V AC for 1 min.)
|
|
Transistor Output
|
NPN / PNP (AC100 - 240V is NPN only)
|
|
Conformity Standards
|
- UL 508, CSA-C22.2 No.14
- FCC Part 15 Subpart B Class A
- RoHS Directive (EN 50581)
- EMC Directive (EN 61000-6-4, EN 61000-6-2)
|
DOWNLOAD
LR_Specifications_24V_DC Type (En).pdf
LR_Specifications_LED Unit (En).pdf
|
|
|
 |
|
 |
| Accessories |
LR4-BU
40mm Buzzer Unit for LR Signal Tower, Silver
|
|
SZP-090U
1/2" NPT adaptor for LR4 and LR5. Aluminum, silver.
|
|
SZL-001
Wall mount L bracket, silver
|
|
LR4-E-C
40mm LED Unit for LR Signal Tower, White; Non-Returnable
|
|
|
|
|
|
|
|
|
|
|
|
SZP-003K
Surface Mount pole bracket, 2 Screws, Black
|
|
LR4-E-RZ
40mm LED Unit for LR Signal Tower, Red with Clear lens; Non-Returnable
|
|
LR4-E-GZ
40mm LED Unit for LR Signal Tower, Green with Clear lens; Non-Returnable
|
|
LR4-E-G
40mm LED Unit for LR Signal Tower, Green; Non-Returnable
|
|
|
|
|
|
|
|
|
|
|
|
LR4-E-R
40mm LED Unit for LR Signal Tower, Red;
Non-Returnable
|
|
|
|
|
|
|
|
|
|
|
|
|
