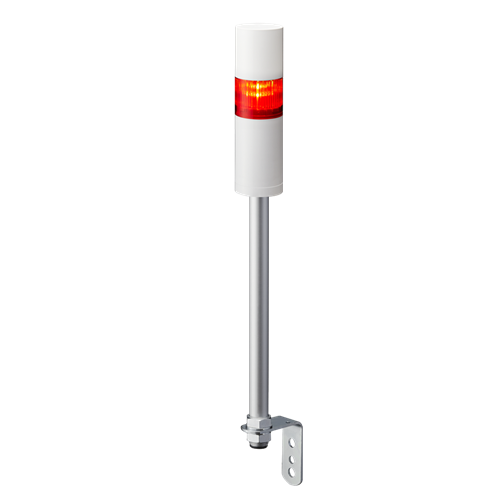

50mm, 1-tier Stack Light, UL, IP54,12V DC, Pole Mount with L Bracket and Cable, Flashing/Buzzer, Off-white body with Red LED
- Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output)
- Re-engineered, completely enclosed sound module, maintains substantial water and dust protection while producing loud, omni-directional sound. (LR5 12V DC: 80dB at 1m)
- A sleek, smooth form factor and a rugged body construction for performance in harsh environments.
- A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.
LR5-101LJBW-R
Bottom view of L-bracket type
LR Series Line up
Untitled Document
Untitled Document
|
Operating Ambient Temperature
|
-20℃ - +50℃
|
|
Operating Humidity Range
|
90% RH or less, no condensation
|
|
Storage Temperature Range
|
-30℃ - +60℃
|
|
Storage Humidity Range
|
90% RH or less, no condensation
|
|
Mounting Location
|
Indoor Use
|
|
Mounting Direction
|
Upright Position
|
|
Protection Rating
|
IP54
|
|
Environmental Conditions
|
Upright Position
|
|
Insulation Resistance
|
More than 1MΩ at 500V DC between live part and non-current carrying metallic part
|
|
Withstand Voltage
|
500V AC applied for 1 minute between live part and non-current carrying metallic part without breaking insulation
|
|
Flash Rate
|
60 ±2 Flashes / min
|
|
Sound Level
|
80dB
Buzzer Sound No.4 (Sweep) from all directions at a 1m distance
|
|
Sound Reduction*
|
ab. -10dB reduction
|
|
Buzzer Sound
|
4 patterns* No.1Rapid Intermittent sound No.2Continuous sound No.3Rapid Hi-low No.4Sweep sound
|
|
Transistor Output
|
NPN / PNP (AC100 - 240V is NPN only)
|
|
Conformity Standards
|
- UL 508, CSA-C22.2 No.14
- FCC Part 15 Subpart B Class A
- RoHS Directive (EN 50581)
- EMC Directive (EN 61000-6-4, EN 61000-6-2)
|
* Dependent on DIP Switch Setting
DOWNLOAD
LR5-Specifications_12V_DC.pdf
LR_Specifications_LED Unit (En).pdf
LR_Specifications_Buzzer Unit (En).pdf
|
|
|
 |
|
 |
| Accessories |
B32310071-7F1
White Head Cover for LR5 Signal Tower; Non-Returnable
|
|
SZW-001W
Surface Mount Bracket
|
|
SZP-001W
Multi-pitch Surface Mount pole bracket, 2 screws, off white
|
|
LR5-BU
50mm Buzzer Unit for LR Signal Tower, Silver
|
|
|
|
|
|
|
|
|
|
|
|
SZP-002U
Surface Mount pole bracket, 2 Screws, silver
|
|
LR5-E-C
50mm LED Unit for LR Signal Tower, White; Non-Returnable
|
|
SZP-090U
1/2" NPT adaptor for LR4 and LR5. Aluminum, silver.
|
|
SZL-001
Wall mount L bracket, silver
|
|
|
|
|
|
|
|
|
|
|
|
LR5-E-R
50mm LED Unit for LR Signal Tower, Red;
Non-Returnable
|
|
SZK-001U
Wall mount pole bracket, 2 Screws, silver
|
|
LR5-E-Y
50mm LED Unit for LR Signal Tower, Amber; Non-Returnable
|
|
LR5-E-G
50mm LED Unit for LR Signal Tower, Green; Non-Returnable
|
|
|
|
|
|
|
|
|
|
|
|
|
