LR6, Red LED module, Clear lens, Non-cancellable, non-returnable
- Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output)
- A sleek, smooth form factor and a rugged body construction for performance in harsh environments, carrying an IP65 protection rating.
- A modular, “Twist and Lock”, design to easily customize and field configure LED units

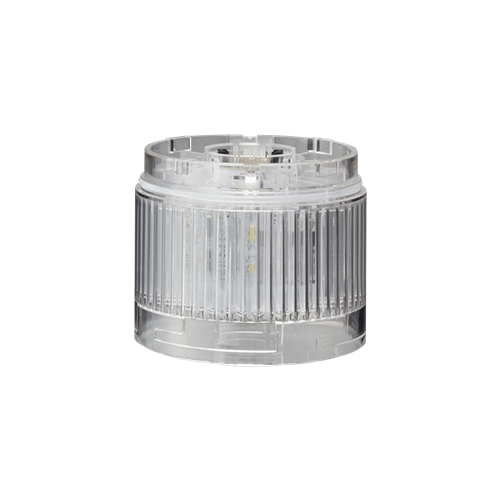

LR6-E-RZ - LR6 Red LED Module with Clear Lens
LR6-E-RZ
LR Series Lineup
|
Operating Ambient Temperature
|
-20℃ - +50℃
|
|
Operating Humidity Range
|
90% RH or less, no condensation
|
|
Mounting Location
|
Indoor Use
|
|
Mounting Direction
|
Upright Position
|
|
Outer Dimension
|
Width: 60mm
Height: 40mm
|
|
Conformity Standards
|
- UL 508, CSA-C22.2 No.14
- RoHS Directive (EN 50581)
- EMC Directive (EN 61000-6-4, EN 61000-6-2)
|
DOWNLOAD
LR_Specifications_LED Unit (En).pdf
|
|
|
 |
|
 |
| Accessories |
LR4-E-Y
40mm LED Unit for LR Signal Tower, Amber;
Non-Returnable
|
|
LR4-E-G
40mm LED Unit for LR Signal Tower, Green; Non-Returnable
|
|
SZL-001
Wall mount L bracket, silver
|
|
SZP-003K
Surface Mount pole bracket, 2 Screws, Black
|
|
|
|
|
|
|
|
|
|
|
|
LR4-E-R
40mm LED Unit for LR Signal Tower, Red;
Non-Returnable
|
|
LR4-E-C
40mm LED Unit for LR Signal Tower, White; Non-Returnable
|
|
SZP-090U
1/2" NPT adaptor for LR4 and LR5. Aluminum, silver.
|
|
SZP-003W
Surface Mount pole bracket, 2 Screws, off-white
|
|
|
|
|
|
|
|
|
|
|
|
SZQ-001W
Folding Bracket for LR Series, Off-white
|
|
|
|
|
|
|
|
|
|
|
|
|
