70mm 1-tier, UL CE IP65 DC 24V, Direct Mount with Cable, Flashing/Buzzer, Off-white body, Red LED
- Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output)
- Re-engineered, completely enclosed sound module, maintains substantial water and dust protection while producing loud, omni-directional sound. (LR7: 90dB at 1m)
- A modular, "Twist and Lock", design to easily customize and field configure LED units and sound modules.
- A sleek, smooth form factor and a rugged body construction for performance in harsh environments, carrying an IP65 protection rating.

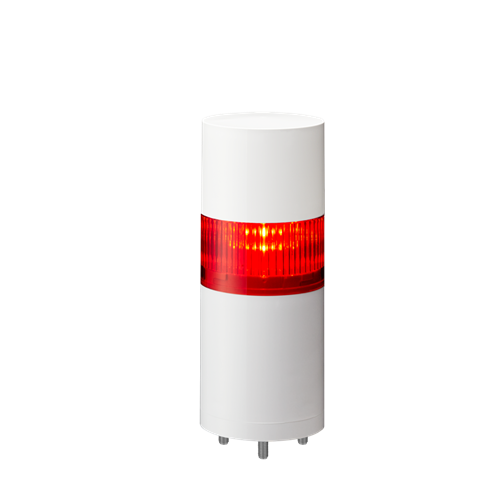

LR7-102WJBW-R
LR7 Direct Mount Bottom View
LR Direct Mount Nuts (Included)
LR Series Line Up
|
Operating Ambient Temperature
|
-20℃ - +50℃
|
|
Operating Humidity Range
|
90% RH or less, no condensation
|
|
Storage Temperature Range
|
-30℃ - +60℃
|
|
Storage Humidity Range
|
90% RH or less, no condensation
|
|
Mounting Location
|
Indoor Use
|
|
Mounting Direction
|
Upright Position
|
|
Protection Rating
|
IP65(IEC 60529) / NEMA TYPE 4X, 13
|
|
Environmental Conditions
|
Upright Position
|
|
Insulation Resistance
|
More than 1MΩ at DC500V between the power input lead and chassis
|
|
Withstand Voltage
|
AC 500V for 1 minute between terminals and chassis without breaking insulation (M2: AC1500V for 1 min.)
|
|
Flash Rate
|
60 ±2 Flashes / min
|
|
Sound Level
|
LR7 Typ. 90dB
|
|
Sound Reduction*
|
ab. -10dB reduction
|
|
Environmental Conditions
|
Buzzer Sound No.4 (Sweep) from all directions at a 1m distance
|
|
Buzzer Sound
|
4 patterns* No.1Rapid Intermittent sound No.2Continuous sound No.3Rapid Hi-low No.4Sweep sound
|
|
Transistor Output
|
NPN / PNP (AC100 - 240V is NPN only)
|
|
Conformity Standards
|
- UL 508, CSA-C22.2 No.14
- FCC Part 15 Subpart B Class A
- RoHS Directive (EN 50581)
- EMC Directive (EN 61000-6-4, EN 61000-6-2)
- KC (KN 61000-6-4, KN 61000-6-2)
|
* Dependent on DIP Switch Setting
DOWNLOAD
LR_Specifications_24V_DC Type (En).pdf
LR_Specifications_LED Unit (En).pdf
LR_Specifications_Buzzer Unit (En).pdf
|
|
|
 |
|
 |
