50mm, 1-tier Stack Light, UL, IP65, 24V DC, Direct Mount with Cable, No Flashing/Buzzer, Off-white body with Red LED
- Re-designed lens and improved module construction delivering bright, even light for visibility from further distances. (2000mcd output)
- A sleek, smooth form factor and a rugged body construction for performance in harsh environments, carrying an IP65 protection rating.
- modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.

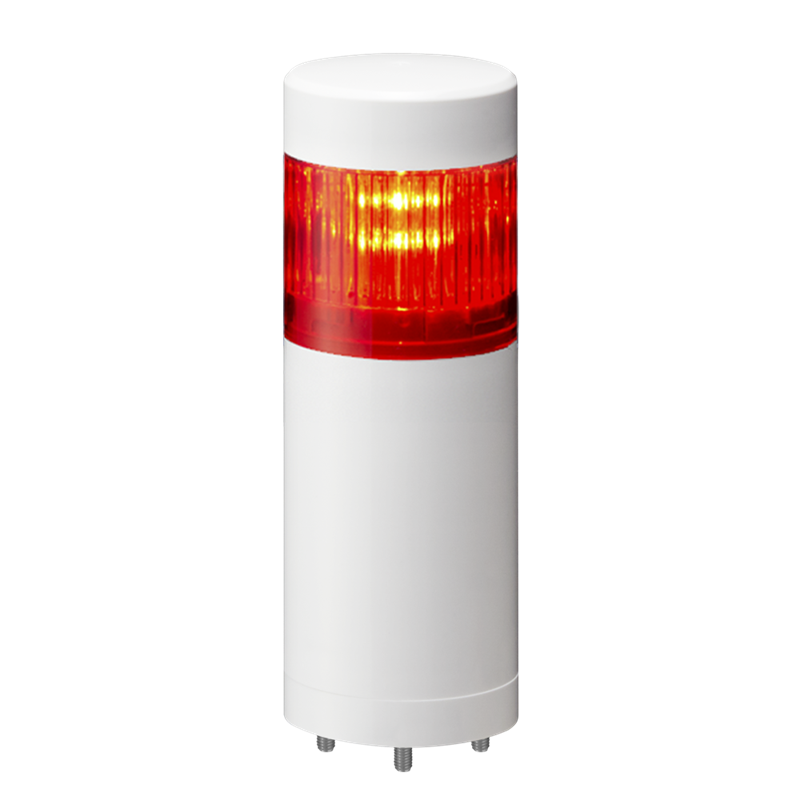

LR5-102WJNW-R Unit

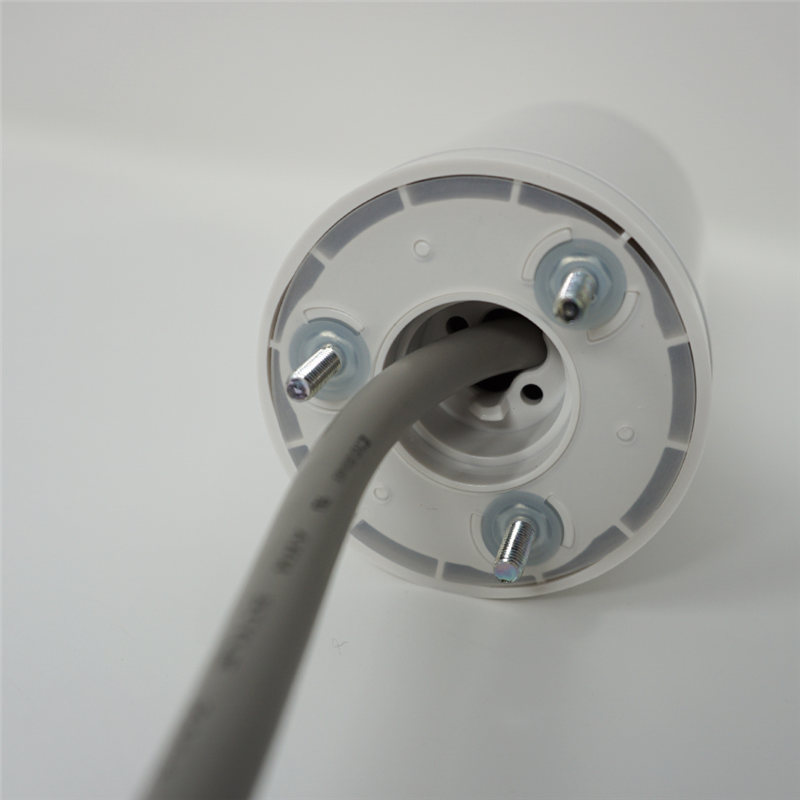

LR5 Direct Mount Bottom View

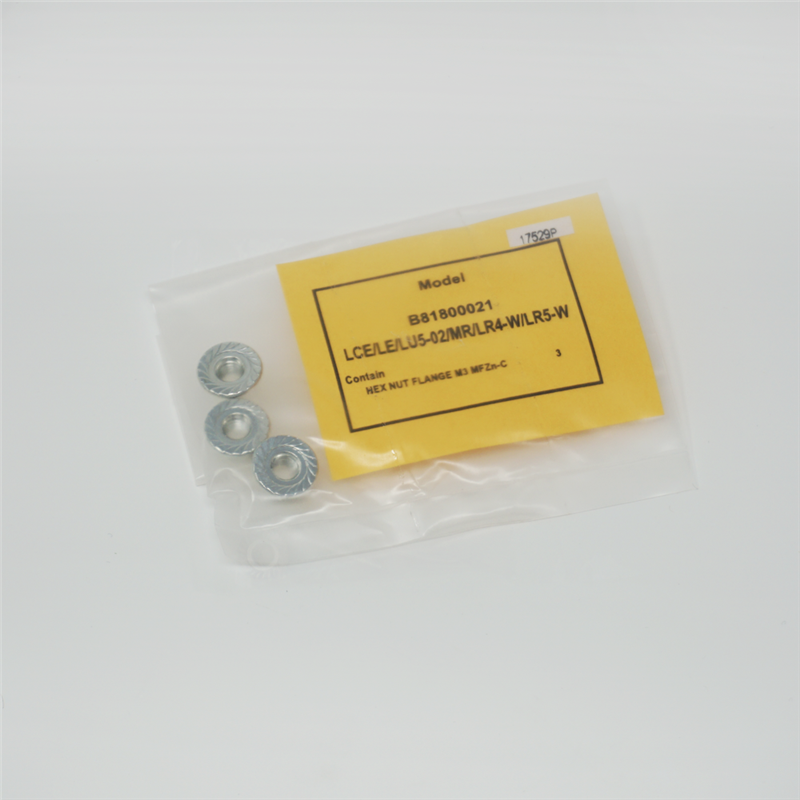

LR Direct Mount Nuts (Included)

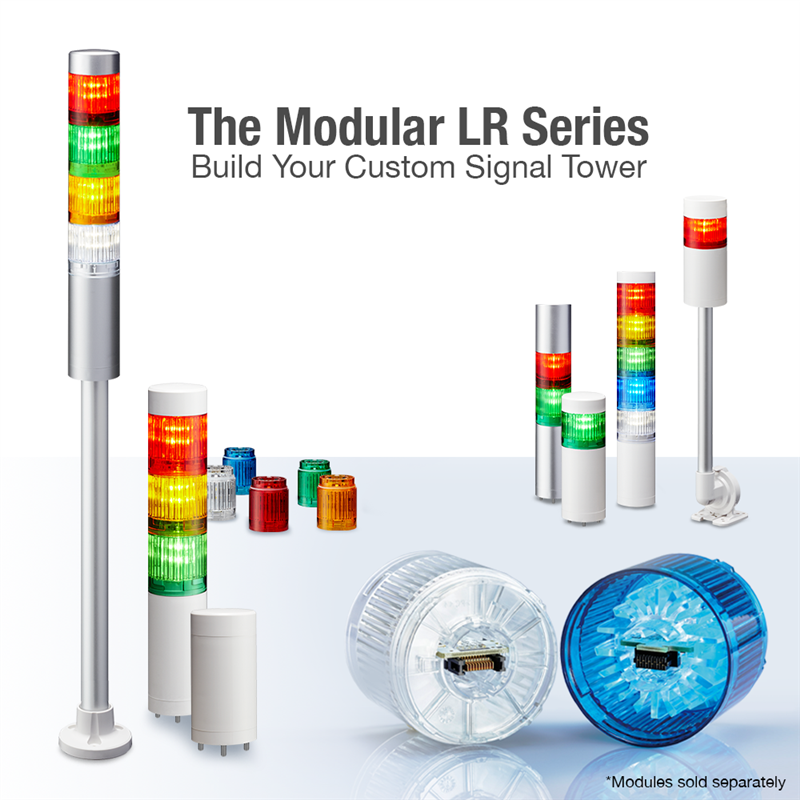

LR Series Line Up
|
Operating Ambient Temperature
|
-20℃ - +50℃
|
|
Operating Humidity Range
|
90% RH or less, no condensation
|
|
Storage Temperature Range
|
-30℃ - +60℃
|
|
Storage Humidity Range
|
90% RH or less, no condensation
|
|
Mounting Location
|
Indoor Use
|
|
Mounting Direction
|
Upright Position
|
|
Protection Rating
|
IP65(IEC 60529) / NEMA TYPE 4X, 13
|
|
Environmental Conditions
|
Upright Position
|
|
Insulation Resistance
|
More than 1MΩ at 500V DC between live part and non-current carrying metallic part |
|
Withstand Voltage
|
500V DC applied for 1 minute between live part and non-current carrying metallic part without breaking insulation | | Transistor Output
|
NPN / PNP (AC100 - 240V is NPN only)
|
|---|
|
Conformity Standards
|
- UL 508, CSA-C22.2 No.14
- FCC Part 15 Subpart B Class A
- RoHS Directive (EN 50581)
- EMC Directive (EN 61000-6-4, EN 61000-6-2)
|
DOWNLOAD
LR_Specifications_24V_DC Type (En).pdf
LR_Specifications_LED Unit (En).pdf
|
|
|
 |
|
 |
| Accessories |
SZW-002W
Desktop Platform for LR4, LR5, and LR6 Signal Towers
|
|
SZW-001W
Surface Mount Bracket
|
|
SZP-002U
Surface Mount pole bracket, 2 Screws, silver
|
|
LR5-BW
50mm Buzzer Unit for LR Signal Tower, Off-white
|
|
|
|
|
|
|
|
|
|
|
|
LR5-E-G
50mm LED Unit for LR Signal Tower, Green; Non-Returnable
|
|
SZP-001W
Multi-pitch Surface Mount pole bracket, 2 screws, off white
|
|
LR5-E-Y
50mm LED Unit for LR Signal Tower, Amber; Non-Returnable
|
|
LR5-E-R
50mm LED Unit for LR Signal Tower, Red;
Non-Returnable
|
|
|
|
|
|
|
|
|
|
|
|
SZL-001
Wall mount L bracket, silver
|
|
SZP-090U
1/2" NPT adaptor for LR4 and LR5. Aluminum, silver.
|
|
SZK-001U
Wall mount pole bracket, 2 Screws, silver
|
|
LR5-E-C
50mm LED Unit for LR Signal Tower, White; Non-Returnable
|
|
|
|
|
|
|
|
|
|
|
|
|
